RS PRO, 6W Plug In Power Supply 5V dc, 1.2A, Level V Efficiency, 1 Output Power Supply, 2-Pin Type C - EuroPlug
- RS Stock No. 726-3053
- Mfr. Part No. HNP06-MicroUSB
- Brand RS Pro

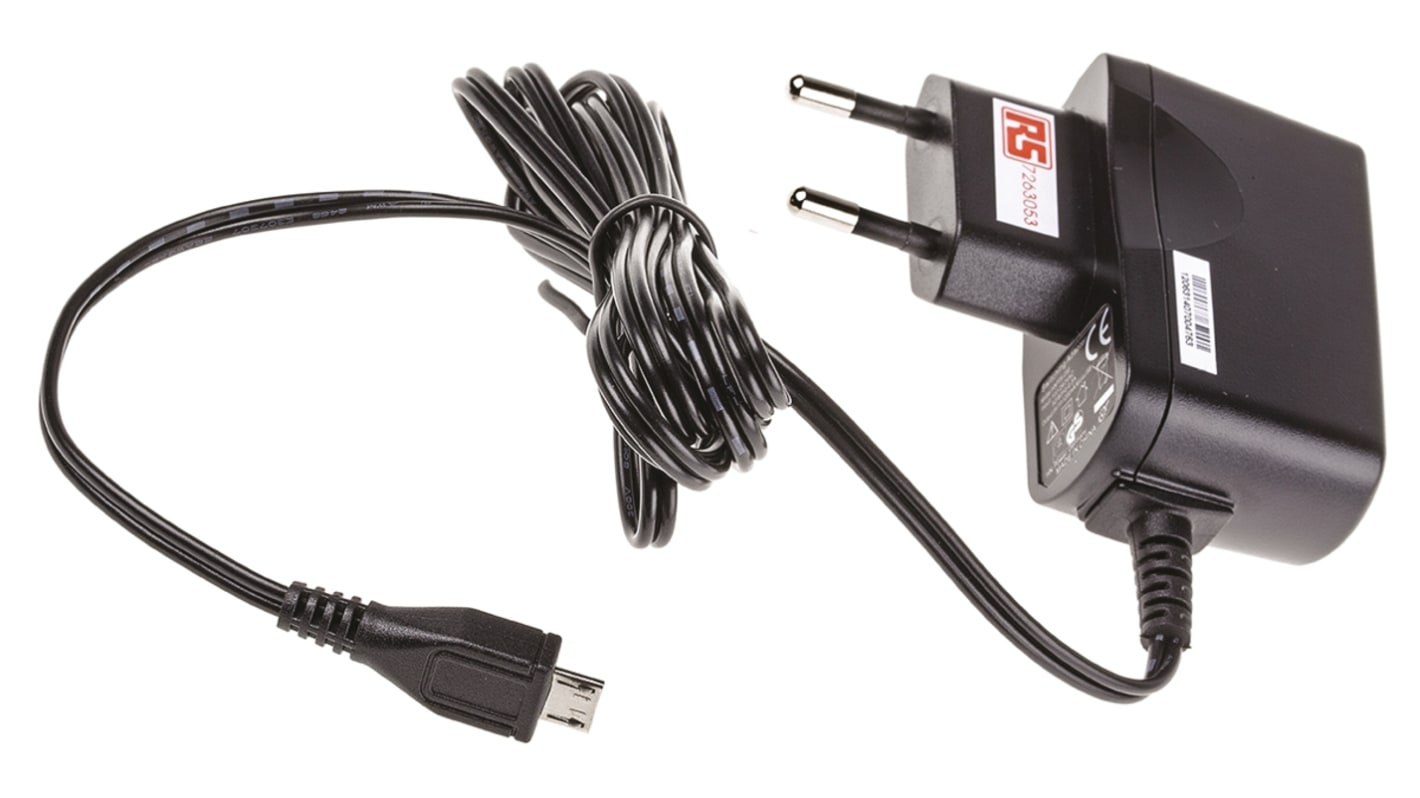

RS Plug-in Micro USB Power Supply Adapter- HNP06 EU Series
Plug in power supply adapter with an integrated Micro-USB socket. Double insulated. ErP V compliance and a low standby power consumption. Suitable for use with the Raspberry Pi computer board and Red Pitaya Open Source Instrument. Additional application such as wireless communications, peripherals, networking, portable equipment, and telecoms are ideal applications for this power supply adapter.
Class II double insulated
Convenient and lightweight
Overload and short circuit protection
Micro-USB connector with 1.5m cable, you do not need a separate USB cable
Low standby current consumption of 0.3W max.
EMC compliance to EN 55022: 2006
Harmonic current compliance to EN 610000-3-2, 3
Suitable for use with Raspberry Pi and Red Pitaya
Note
Conforms to Energy-related Product Directive 2009/125/EC.
MTBF to MIL-HDBK-217F
Approvals
TUV
Standards
EN60950-1
Product Application Information
Suitable for use with the Raspberry Pi computer board, Red Pitaya Open Source Instrument and applications such as wireless communications, peripherals, networking, portable equipment, and telecoms.
| Attribute | Value |
|---|---|
| Input Voltage | 90 → 264V ac |
| Output Voltage | 5 V dc |
| Output Current | 1.2A |
| Plug Type | 2-Pin Type C - EuroPlug |
| Output Connector | Micro USB |
| Power Rating | 6W |
| Type | Power Supply |
| Number of Outputs | 1 |
| Length | 58.7mm |
| Cable Length | 1.5m |
| Ripple And Noise | 100mV Pk-Pk |
| Line Regulation | ±1% |
| Protection Features | Overload Protection, Short Circuit Protection |
| Maximum Temperature | +45°C |
| Weight | 45g |
| Efficiency | 71% |
| Energy Efficiency Level | V |
| Power Signal Conversion Type | AC-DC |
| Minimum Temperature | -5°C |
| Depth | 56mm |
| Maximum Input Current | 300mA |
| Standards Met | ErP Compliant |
| Width | 26mm |
| Input Frequency Range | 47 → 63Hz |
| Special Features | Double Insulated, Lowest Standby Power Consumption, Plug In Switching Adaptor |
| Application | Networking, Peripherals, Portable Equipment, Telecom, Wireless Communications |
| Load Regulation | ±5% |
| MTBF | 40000h |
| Holdup Time | 5ms |
