Phihong Plug In Power Supply 9V dc, 1.11A, Level V Efficiency, 1 Output Switched Mode Power Supply, Interchangeable

  • RS Stock No. 706-8094
  • Mfr. Part No. PSC12R-090(RS)
  • Brand Phihong
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

ErP Energy Saving, 5W to 30W Adaptors

Energy saving ErP compliant adaptors
Low no-load power consumption (<0.5W )
Regulated output DC mains adaptors

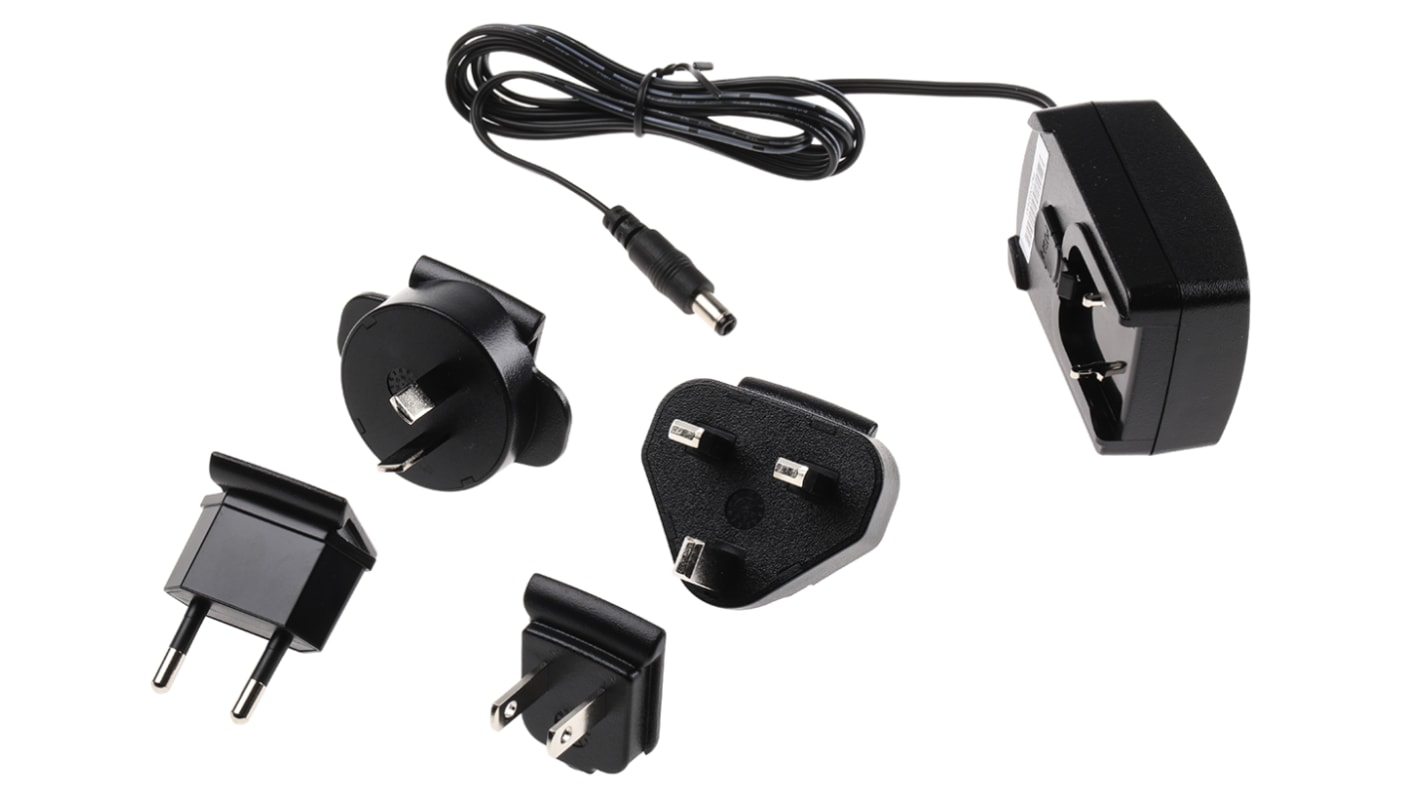

Supplied with interchangeable mains plugs for use in UK, Europe, USA and Australia
Universal worldwide input 100-240Vac ±10%, 50/60Hz
1.8 metre (approx.) output lead with 2.1x5.5x9.5mm centre positive output connector
EMI compliance to EN 55022 Class B and FCC Class B
Harmonic compliance to EN61000-3-2
Class II double insulated
Over-voltage and short circuit protected

Note

ErP level V products conform to Energy-related Product Directive 2009/125/EC.
Non Compliant types are for Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Depth dimension excluding pins.

Approvals

UL /cUL, TUV, C-Tick, SAA

Approvals

UL /cUL, TUV, C-Tick, SAA

Specifications
Attribute Value
Type Switched Mode Power Supply
Plug Type Interchangeable
Output Voltage 9 V dc
Input Voltage 90 → 264V ac
Output Current 1.11A
Maximum Temperature +40°C
Output Connector 2.1 x 5.5 mm Centre Positive
Number of Outputs 1
Cable Length 1.2m
Efficiency 76.6%
Width 45mm
Depth 32.39mm
Energy Efficiency Level V
Standards Met ErP Compliant
Load Regulation ±5%
Length 71.7mm
Minimum Temperature 0°C
Discontinued product
