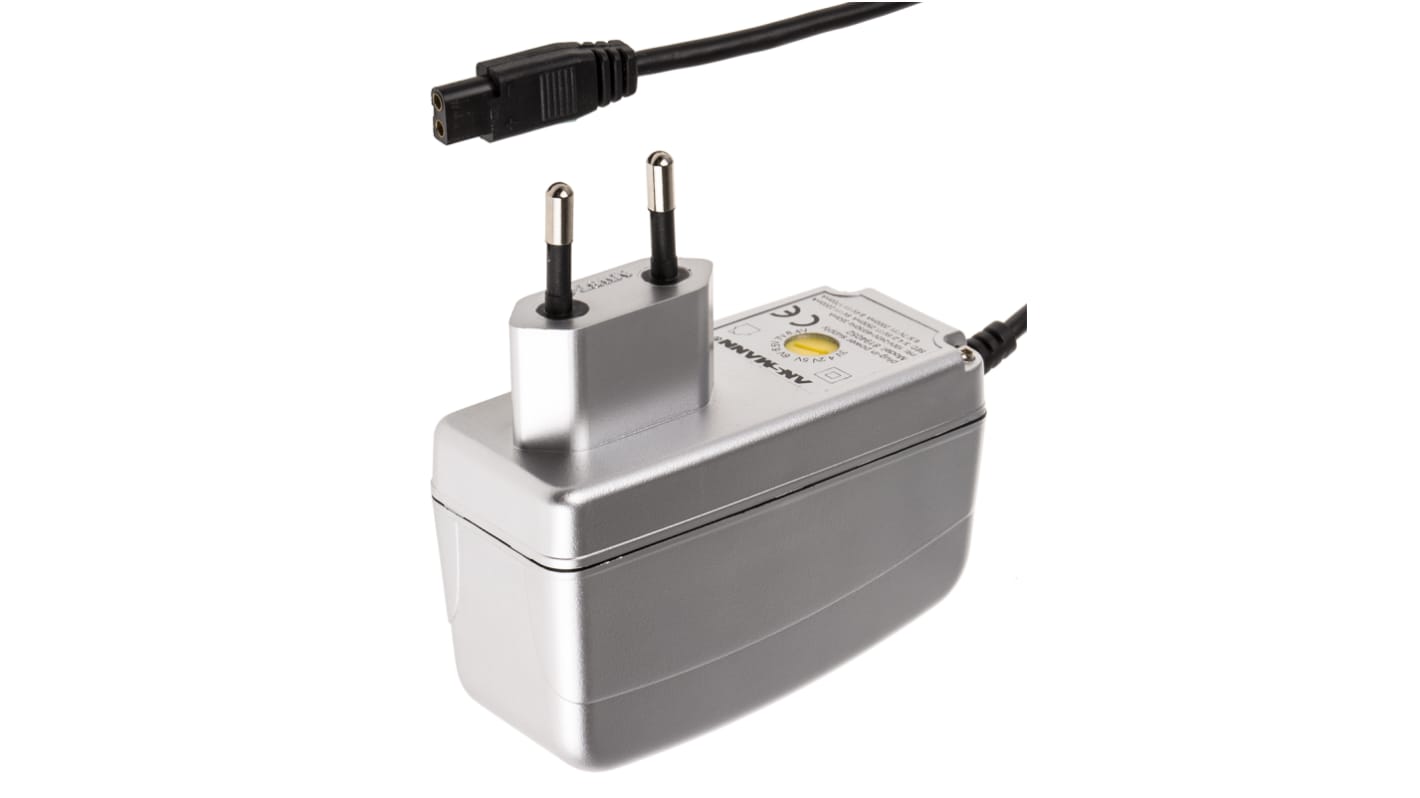

Ansmann 14.28W Plug In Power Supply 3 to 8.4 V dc Output, 1.7 → 2.5A Output
- RS Stock No.:
- 679-6704
- Mfr. Part No.:
- 8194052
- Brand:
- Ansmann
- RS Stock No.:
- 679-6704
- Mfr. Part No.:
- 8194052
- Brand:
- Ansmann
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
2.5A Multi-Voltage Digital Camera Plug-top Adaptors, 3-Pin UK & 2-Pin Euro
External switch mode plug-top power supplies for use with digital cameras
Plug directly into a standard 3-pin UK mains socket or 2-pin Euro socket
Regulated outputs
100-240Vac 50/60Hz input
Output voltages selectable from 3V, 4.2V, 5V, 6V, 6.5V, 7V and 8.4Vdc
1.8m output lead with set of 7 interchangeable output connectors
Power on LED indicator
Class II - double insulated
Plug directly into a standard 3-pin UK mains socket or 2-pin Euro socket
Regulated outputs
100-240Vac 50/60Hz input
Output voltages selectable from 3V, 4.2V, 5V, 6V, 6.5V, 7V and 8.4Vdc
1.8m output lead with set of 7 interchangeable output connectors
Power on LED indicator
Class II - double insulated
Note
Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Specifications
Attribute | Value |
|---|---|
| Plug Type | Type C |
| Output Voltage | 3 V dc, 4.2 V dc, 5 V dc, 6 V dc, 6.5 V dc, 7 V dc, 8.4 V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac |
| Output Current | 1.7 → 2.5A |
| Maximum Temperature | +25°C |
| Output Connector | Interchangeable |
| Input Connector | EU Plug |
| Number of Outputs | 1 |
| Power Rating | 14.28W |
| Cable Length | 1.8m |
| Medical Approved | No |
| MTBF | 70000h |
| Load Regulation | ±10% |
| Type | Switched Mode Power Supply |
| Length | 82mm |
| Minimum Temperature | 0°C |
| Depth | 50mm |
| Width | 36mm |
