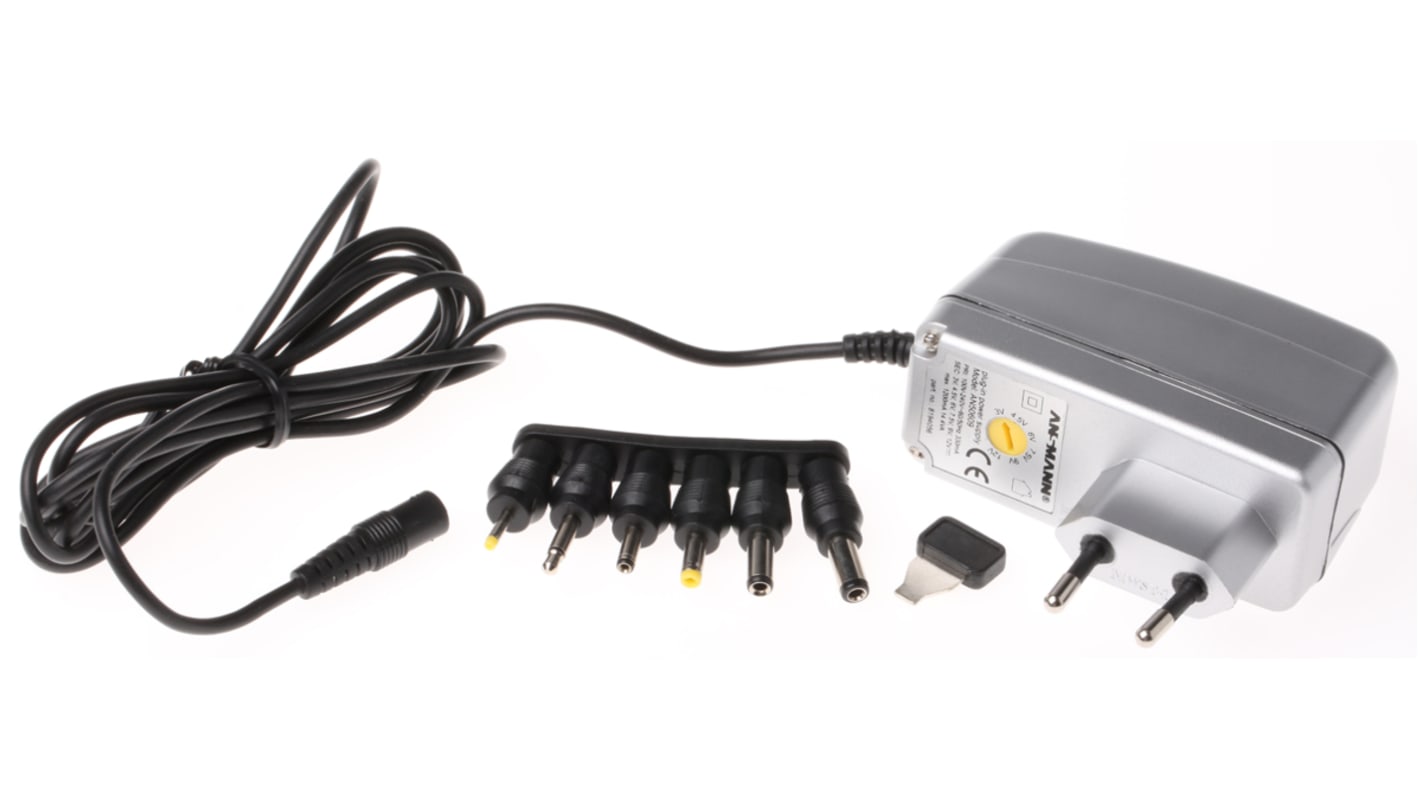

Ansmann, 14.4W Plug In Power Supply 3 to 12 V dc, 1.2A, 1 Output Switched Mode Power Supply, Type C

  • RS Stock No. 679-6700
  • Mfr. Part No. 8194056
  • Brand Ansmann
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

1.2A Multi-Voltage Plug-top Adapters, 3-Pin UK & 2-Pin Euro

External switch mode plug-top power supplies
Regulated outputs
100-240Vac 50/60Hz input
Output voltages selectable from 3V, 4.5V, 6V, 7.5V, 9V and 12Vdc
1.8m output lead with polarity inverter & set of 6 interchangeable output connectors
Power on LED indicator
Class II - double insulated

Note

Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.

Specifications
Attribute Value
Type Switched Mode Power Supply
Plug Type Type C
Output Voltage 3 V dc, 4.5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 1.2A
Maximum Temperature +25°C
Output Connector Interchangeable
Input Connector EU Plug
Number of Outputs 1
Power Rating 14.4W
Cable Length 1.8m
Width 36mm
Depth 50mm
Length 82mm
Load Regulation ±10%
Minimum Temperature 0°C
