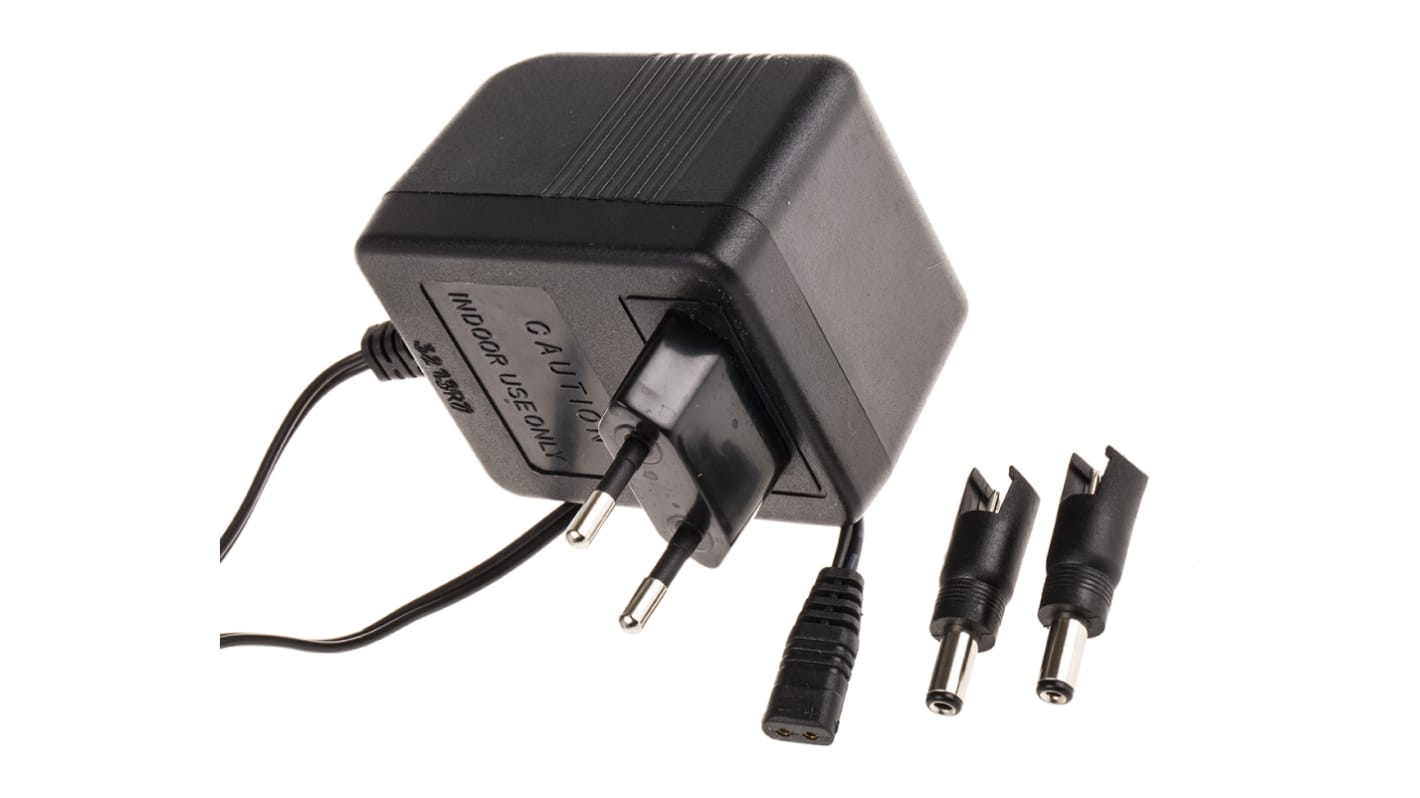

Mascot, 18W Plug In Power Supply 12V ac, 1.5A, 1 Output Linear Power Supply, Type C

  • RS Stock No. 400-6608
  • Mfr. Part No. 9780000047
  • Brand Mascot
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

2-Pin Euro AC Adaptors

Plugs directly into a standard 2 pin Euro socket
2m (approx) output lead with interchangeable connectors
Supplied with 2 loose connectors with snap-lock feature, 1x2.1mm and 1x2.5mm
Double insulation and protection to IP40
Double bobbin transformer 4kV primary/secondary isolation
Internal short circuit protection by primary thermal fuse
High quality manufacturing and testing in accordance with EN60950

Note

Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009

Approvals

7777

Specifications
Attribute Value
Type Linear Power Supply
Plug Type Type C
Output Voltage 12 V ac
Input Voltage 230V ac
Output Current 1.5A
Maximum Temperature +40°C
Output Connector Interchangeable
Input Connector EU Plug
Number of Outputs 1
Power Rating 18W
Cable Length 2m
Depth 47mm
Width 58mm
Length 74mm
Minimum Temperature -10°C
41 In stock - FREE next working day delivery available
Price Each
£ 20.91
(exc. VAT)
£ 25.09
(inc. VAT)
Units
Per unit
1 - 4
£20.91
5 - 9
£20.28
10 - 24
£19.66
25 - 49
£19.03
50 +
£18.40
