- RS Stock No.:
- 181-2099
- Mfr. Part No.:
- GSM12E09-P1J
- Brand:
- MEAN WELL
- RS Stock No.:
- 181-2099
- Mfr. Part No.:
- GSM12E09-P1J
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

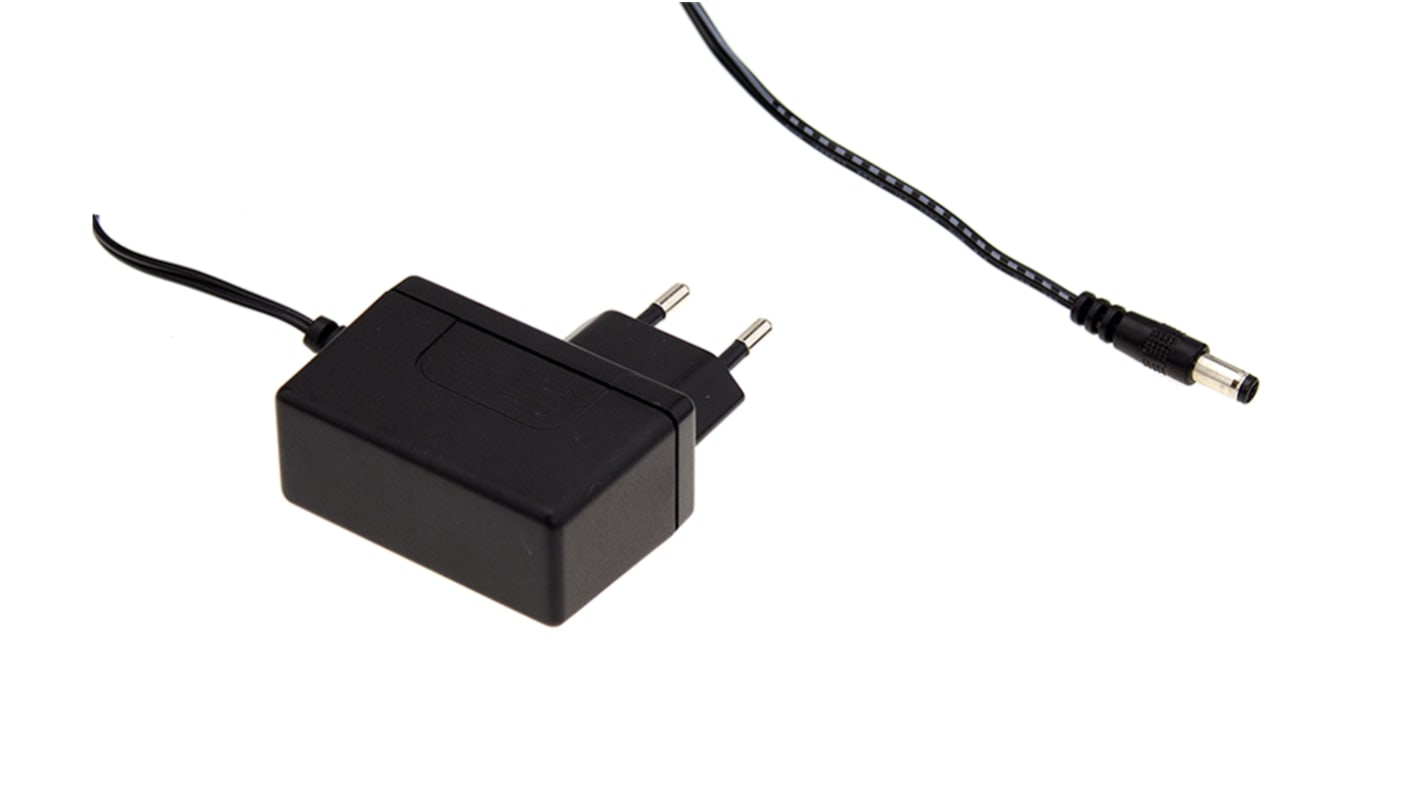

AC-DC Medical wall mount single output adaptor, Output 9Vdc at 1.33A with P1J tuning fork plug OD 5.5mm, Euro 2 pin plug, 2xMOPP
Universal AC input/ full range
Extremely low leakage current
No load power consumption<0.075W(<0.1W for 18V/48V)
-20∼+70°C wide range working temperature
Protections: Short circuit/ Overload/ Over voltage
Fully enclosed plastic case
3 years warranty
Extremely low leakage current
No load power consumption<0.075W(<0.1W for 18V/48V)
-20∼+70°C wide range working temperature
Protections: Short circuit/ Overload/ Over voltage
Fully enclosed plastic case
3 years warranty
Specifications
Attribute | Value |
---|---|
Adapter Type | Plug-In Adapter |
Plug Type | Type C |
Output Voltage | 9V dc |
Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
Output Current | 1.33A |
Maximum Temperature | +70°C |
Output Connector | 2.1 x 5.5 x 11 mm Centre Positive |
Input Connector | EU Plug |
Number of Outputs | 1 |
Power Rating | 12W |
Cable Length | 1.2m |
Medical Approved | Yes |
MTBF | 400kh |
Standards Met | CE, EAC, EAC TP TC 004, EN 60601-1, EN 60601-1-11, TUV EN 60601-1, VI |
Efficiency | 82% |
Minimum Temperature | -20°C |
Depth | 39.7mm |
Type | AC/DC Adapter |
Width | 27.4mm |
Energy Efficiency Level | VI |
Length | 62.2mm |
Series | GSM12E |
Load Regulation | ±4% |
