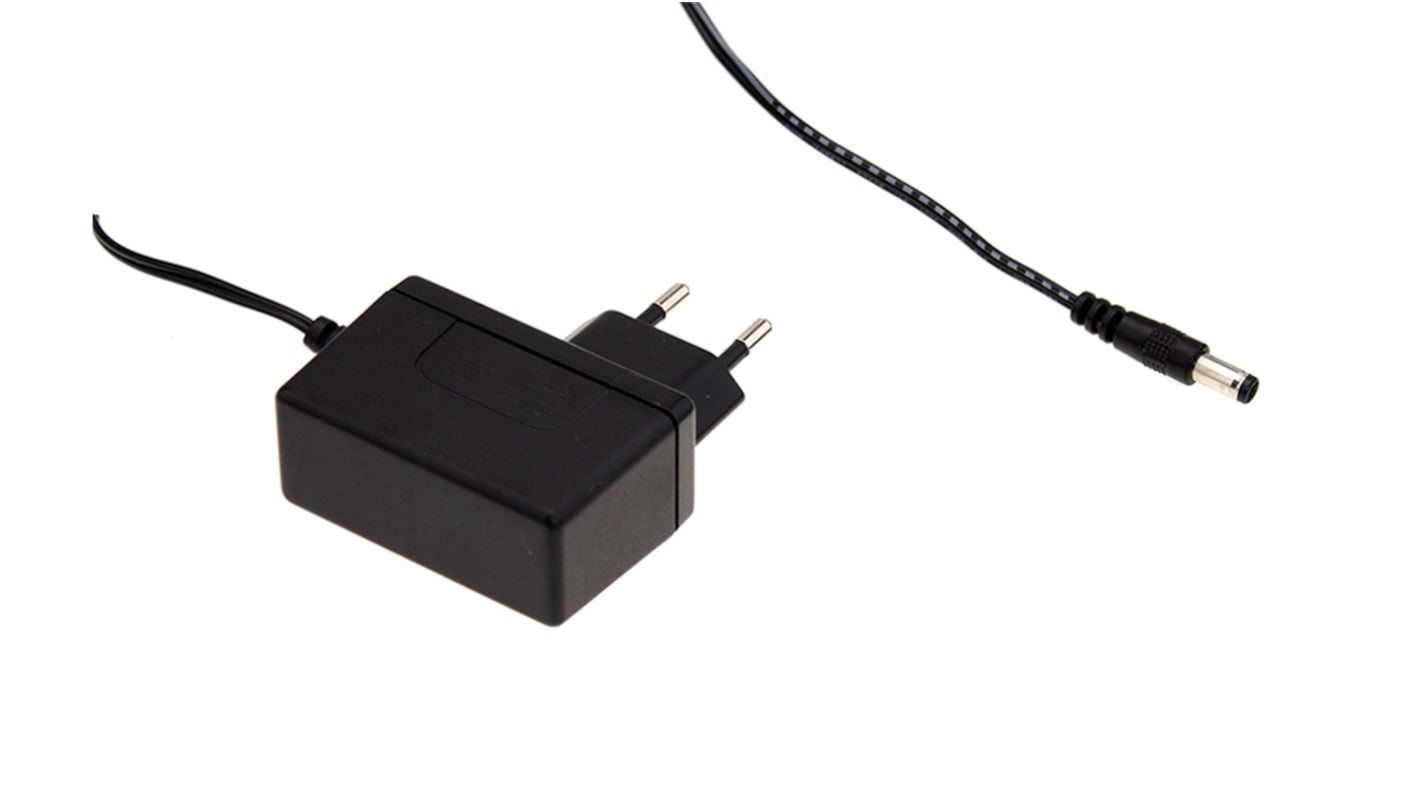

MEAN WELL 12W Plug-In AC/DC Adapter 7.5V dc Output, 1.6A Output

RS Stock No.:: 181-2098
Mfr. Part No.:: GSM12E07-P1J
Brand:: MEAN WELL

MEAN WELL 12W Plug-In AC/DC Adapter 7.5V dc Output, 1.6A Output

48 In stock - FREE next working day delivery available

Added

Price Each

£9.05

(exc. VAT)

£10.86

(inc. VAT)

Units	Per unit
1 +	£9.05

RS Stock No.:: 181-2098
Mfr. Part No.:: GSM12E07-P1J
Brand:: MEAN WELL

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

AC-DC Medical wall mount single output adaptor, Output 7.5Vdc at 1.6A with P1J tuning fork plug OD 5.5mm, Euro 2 pin plug, 2xMOPP

Universal AC input/ full range
Extremely low leakage current
No load power consumption<0.075W(<0.1W for 18V/48V)
-20∼+70°C wide range working temperature
Protections: Short circuit/ Overload/ Over voltage
Fully enclosed plastic case
3 years warranty

Specifications

Attribute	Value
Adapter Type	Plug-In Adapter
Plug Type	Type C
Output Voltage	7.5V dc
Input Voltage	100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac
Output Current	1.6A
Maximum Temperature	+70°C
Output Connector	2.1 x 5.5 x 11 mm Centre Positive
Input Connector	EU Plug
Number of Outputs	1
Power Rating	12W
Cable Length	1m
Medical Approved	Yes
Standards Met	CE, EAC, EAC TP TC 004, EN 60601-1, EN 60601-1-11, TUV EN 60601-1, VI
Efficiency	82%
MTBF	400kh
Length	62.2mm
Load Regulation	±5%
Minimum Temperature	-20°C
Depth	39.7mm
Type	AC/DC Adapter
Energy Efficiency Level	VI
Series	GSM12E
Width	27.4mm
