RS PRO, 24W Plug Adapter 24V dc, 1A, Level VI Efficiency, 1 Output Switched Mode Power Supply, Type C

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

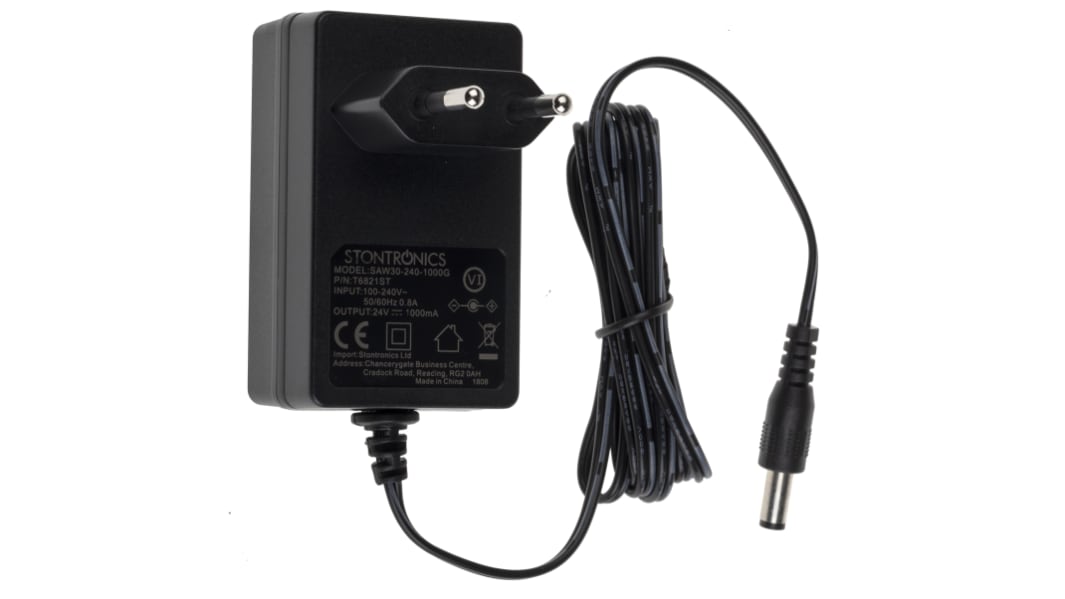

RS PRO Plug In Power Supply

The RS PRO AC/DC adapter is a high-quality adapter with an output voltage rating of 24VDC and a current rating of 1A. This European plug-in power supply provides a compact fixed wall plug enclosure. It is suitable for use in many general power applications. It comes with the relevant safety and EMC standards.

Features and Benefits

Universal input voltages of 100VAC to 240VAC Regulated power output of 24W DoE level VI efficiency Switched mode power supply A high-efficiency rating adapters Overvoltage and over load protection No load power consumption and low leakage current Regulated output power Operating temperature range between 0°C and 40°C 2-pin plug input connector 3-year warranty

Applications

IT Networking and peripherals equipment Gaming machines Point of sale

Certifications

CE Approved

Specifications
Attribute Value
Type Switched Mode Power Supply
Plug Type Type C
Output Voltage 24 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 1A
Maximum Temperature +40°C
Output Connector 2.1 x 5.5 x 12 mm Centre Positive
Input Connector EU Plug
Number of Outputs 1
Power Rating 24W
Regulated/Unregulated Regulated
Efficiency 86.8 (Minimum)%
Minimum Temperature 0°C
Depth 88.7mm
Width 50.4mm
Length 74.5mm
Standards Met CE Certified, CE-EN 55022, T-LICENSE-BS EN 60950-1
Energy Efficiency Level VI
Load Regulation ±2%
23 In stock for FREE next working day delivery
Price Each
£ 8.28
(exc. VAT)
£ 9.94
(inc. VAT)
Units
Per unit
1 - 4
£8.28
5 - 9
£7.87
10 - 24
£7.46
25 - 49
£7.04
50 +
£6.63
