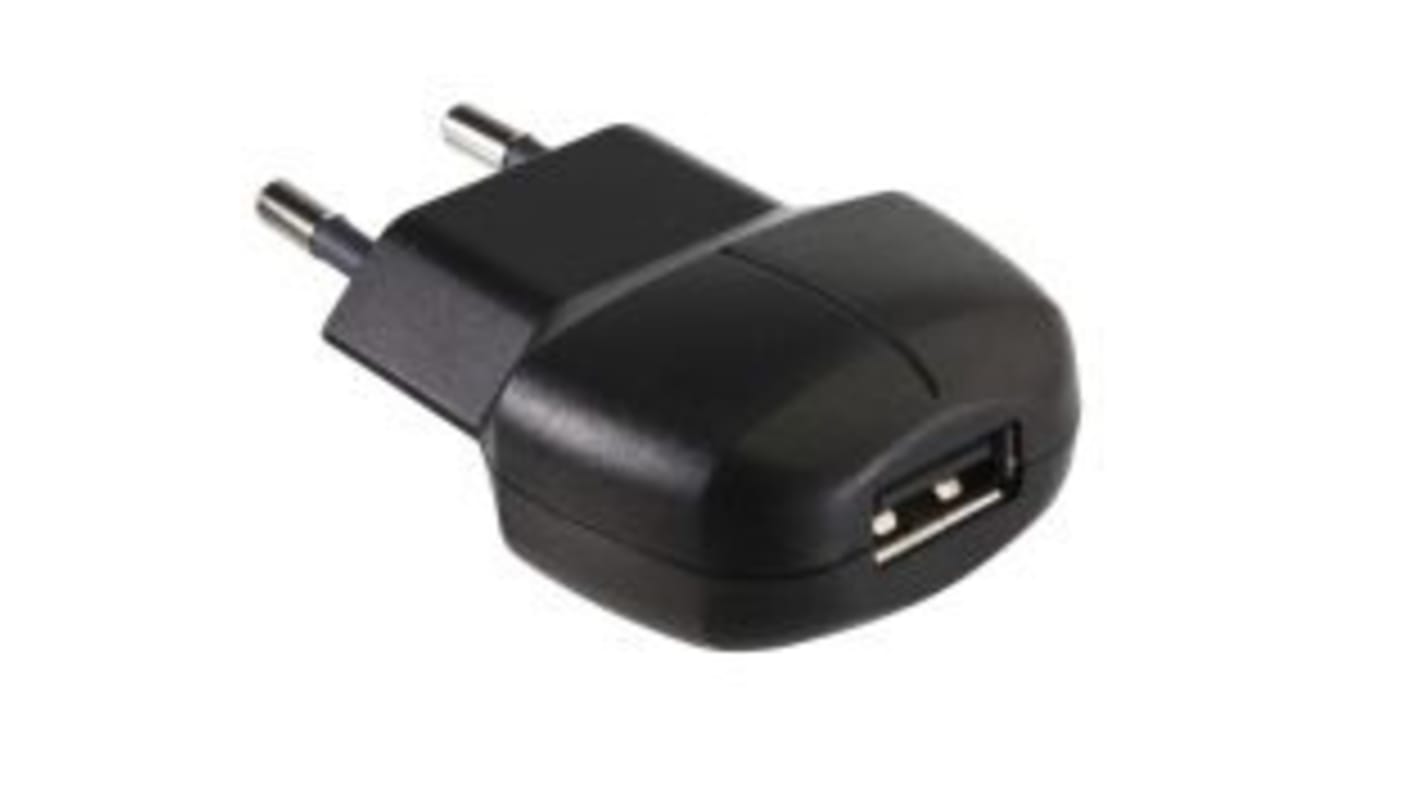

Friwo, 0.1W Plug Adapter 5V dc, 1.1A, Level VI Efficiency, 1 Output Switched Mode Power Supply, Type C

  • RS Stock No. 161-8171
  • Mfr. Part No. FW8005/EU/05
  • Brand Friwo
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

Switch mode USB power supplies. Confirm to IEC 60950

Output voltage tolerance: +2% / -2%
DC output: USB socket Type A
Current: 1000 mA
Family : FOX5
Frequency: 50 / 60 Hz
Humidity: 10% - 95%
Working temperature: 0°C - 40°C
Input tolerance: ±10%
Storage temperature: -40°C - 70°C
AC Input: EURO, US/JP
Input voltage: 100-240 V
MTBF: 200000 h acc. Mil217F (Based on calculations at 120 Vac / 60 Hz & 230 Vac / 50 Hz, ambient 25 °C and 100% load) (The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic ) h
Output voltage: 5 V
Protection Class: II

Specifications
Attribute Value
Type Switched Mode Power Supply
Plug Type Type C
Output Voltage 5 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 1.1A
Maximum Temperature +40°C
Output Connector USB Type A
Input Connector EU Plug
Number of Outputs 1
Power Rating 0.1W
Minimum Temperature 0°C
Depth 65mm
Energy Efficiency Level VI
Width 22mm
Standards Met CE, CULus Recognized, EN 55024, EN 55032, ENEC 22, IEC 60065, IEC 60335-1, IEC 60950, MIL-217F, SI
Series FOX5-F-USB
Length 40mm
