Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

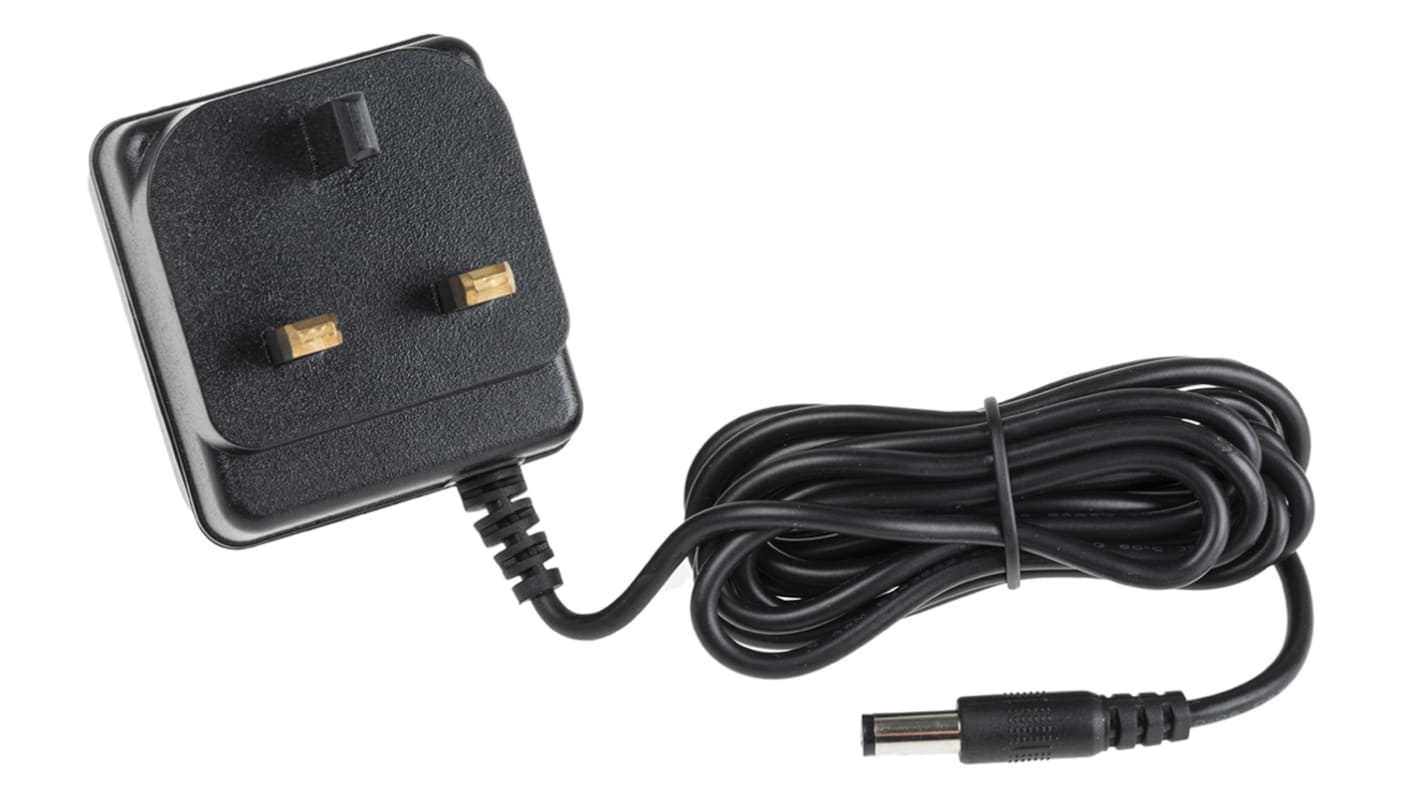

RS PRO 3 W Plug-In Power Supply 9 V DC, 330 mA, Level IV Efficiency, 1 Output AC/DC Adapter, UK
This RS PRO plug-in power supply helps you to power and run your electronics. Use it to ensure the correct voltage and current go through to your components for optimal performance.
It carries an Ingress Protection (IP) rating of IP20, so it's considered touch-proof and resistant to large dust particles. You can use this product to power desk lamps and aquarium motors in home and workplace settings.
It carries an Ingress Protection (IP) rating of IP20, so it's considered touch-proof and resistant to large dust particles. You can use this product to power desk lamps and aquarium motors in home and workplace settings.
Features and Benefits
- Cable length of 1.8 m
- Depth of 45 mm
- Energy efficiency level IV
- UK plug input connector
- Input frequency range of 50 to 60 Hz
- Input voltage of 230 V AC
- Length of 56 mm
- Line regulation of ±1%
- Load regulation of ±5%
- Maximum input current of 30 mA (milliamperes)
- Not medically approved
- Maximum temperature of +40°C
- Minimum temperature of -20°C
- MTBF (mean time between failures) of 50k
- One output
- Centre positive output connector of 2.1 x 5.5 x 12 mm
- Output current of 330 mA (milliamperes)
- Output voltage of 9 V DC
- UK plug type
- Power rating of 3 W
- AC-DC power signal conversion type
- Unregulated
- Ripple and noise of 570 mV
- AC/DC adapter type
- Weight of 210 g
- Width of 52 mm
Specifications
Attribute | Value |
---|---|
Adapter Type | Plug-In Adapter |
Plug Type | Type G |
Output Voltage | 9V dc |
Input Voltage | 230V ac |
Output Current | 330mA |
Maximum Temperature | +40°C |
Output Connector | 2.1 x 5.5 x 12 mm Centre Positive |
Input Connector | UK Plug |
Number of Outputs | 1 |
Power Rating | 3W |
Regulated/Unregulated | Unregulated |
Cable Length | 1.8m |
Medical Approved | No |
MTBF | 50k |
Minimum Temperature | -20°C |
Width | 52mm |
Type | AC/DC Adapter |
Depth | 45mm |
Length | 56mm |
Load Regulation | ±5% |
Energy Efficiency Level | IV |
