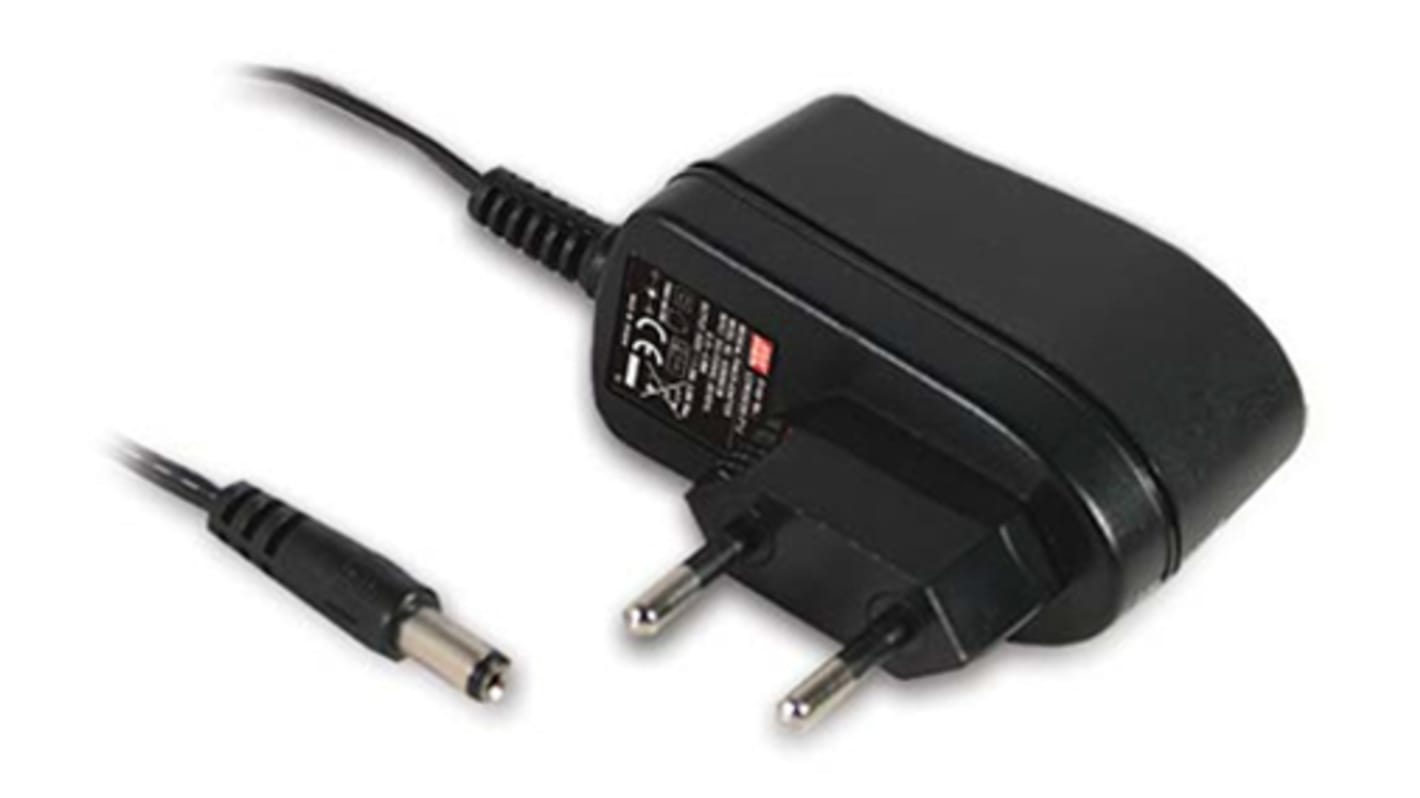

MEAN WELL 6W Plug-In AC/DC Adapter 18V dc Output, 330mA Output
- RS Stock No.:
- 123-4973
- Mfr. Part No.:
- GSM06E18-P1J
- Brand:
- MEAN WELL
9 In stock - FREE next working day delivery available
Added
Price Each
£13.04
(exc. VAT)
£15.65
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £13.04 |
| 5 - 9 | £12.65 |
| 10 - 24 | £12.26 |
| 25 - 49 | £11.87 |
| 50 + | £11.48 |
- RS Stock No.:
- 123-4973
- Mfr. Part No.:
- GSM06E18-P1J
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details
Mean Well GMS06E Series Plug In Power Supply
Mean Well GMS06E are a series of highly reliable 6 W medical-grade plug-in power supply. The series offers a standard 2-pin European power plug, offering an 85V ac to 264V ac input range. The GMS06E series offers fixed outputs ranging from 5V dc to 24V dc, which can cater for a wide variety of medical devices. The series has been designed to adhere to 2*MOPP international medical standards, offering ultra low leakage current.
The GSM06E series is also an efficient range, boasting up to 82% efficiency coupled with an extremely low no-load power consumption below 0.3 W. The series also has been designed in accordance with the latest Level V energy regulation. Mean Well has also integrated a "Supreme" feature into the GSM06E series, enabling the power supply to save energy when it's either under the operating mode or standby mode.
The GSM06E series is also an efficient range, boasting up to 82% efficiency coupled with an extremely low no-load power consumption below 0.3 W. The series also has been designed in accordance with the latest Level V energy regulation. Mean Well has also integrated a "Supreme" feature into the GSM06E series, enabling the power supply to save energy when it's either under the operating mode or standby mode.
Features and Benefits
2 pole Euro plug.
Medical safety approved.
Complies with Level V efficiency rating.
Full range universal AC input.
Class II power (Without earth pin)
Typical Applications include
Blood glucose & pressure meters.
Nebulizer.
Inhaler.
Portable medical devices.
Switch Mode - Mean Well
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Type C |
| Output Voltage | 18V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 330mA |
| Maximum Temperature | +50°C |
| Output Connector | 2.1 x 5.5 x 11 mm Centre Positive |
| Input Connector | EU Plug |
| Number of Outputs | 1 |
| Power Rating | 6W |
| Cable Length | 1.83m |
| Medical Approved | Yes |
| MTBF | 500kh |
| Standards Met | CB, CE, EISA 2007, EN 55011, EN 60601-1-11, EN 60601-1-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, MIL-HDBK-217F, TUV EN 60601-1, TUV IEC 60601-1 |
| Length | 32mm |
| Depth | 42.5mm |
| Type | AC/DC Adapter |
| Width | 66mm |
| Series | GSM06E |
| Load Regulation | ±3% |
| Minimum Temperature | 0°C |
