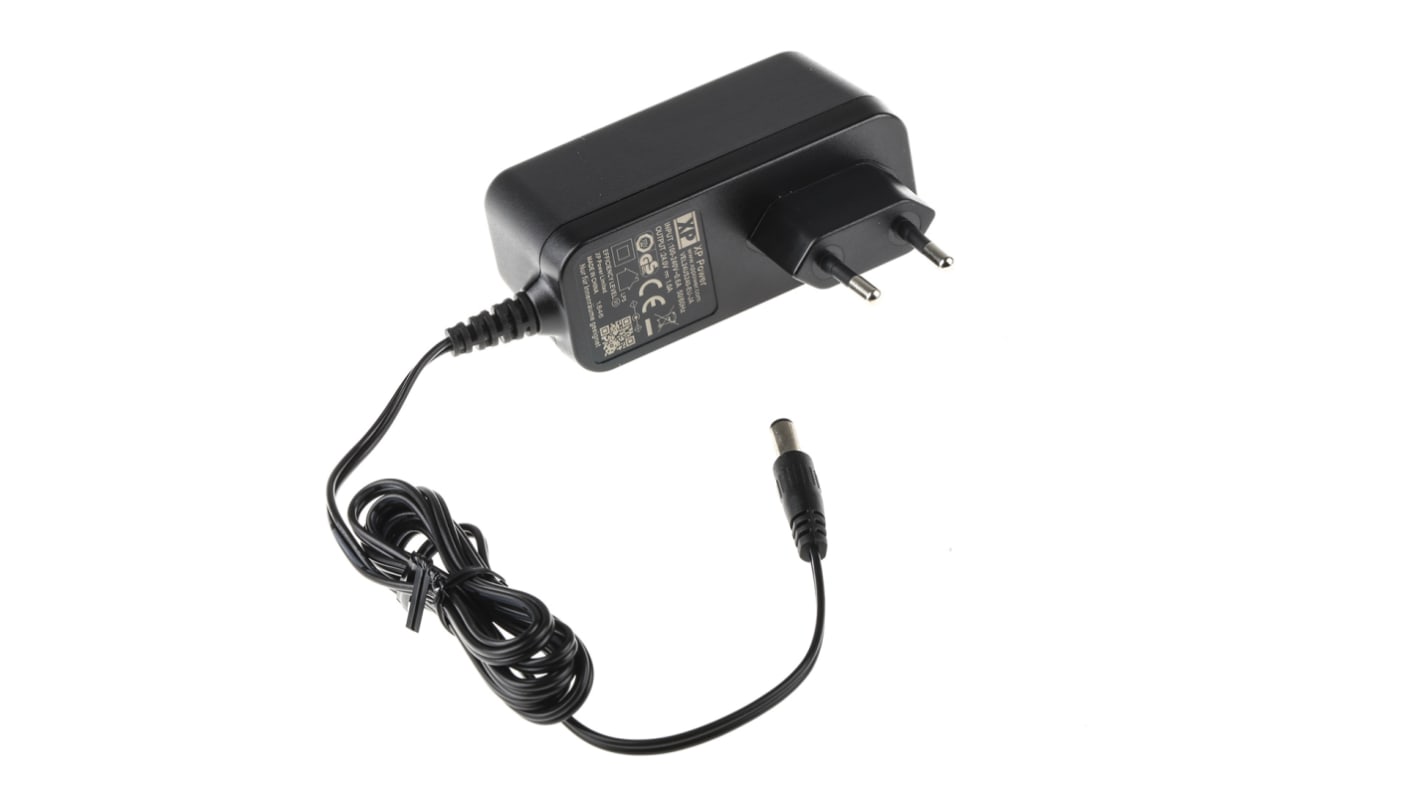

XP Power, 24W Plug In Power Supply 24V dc, 1A, Level VI Efficiency, 1 Output Switched Mode Power Supply, Type C

  • RS Stock No. 121-7162
  • Mfr. Part No. VEL24US240-EU-JA
  • Brand XP Power
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

XP Power Supply

The XP Power VEL24 series standard jack plug-in power supply has a regulated output voltage rating of 24VDC and current rating of 1A. It supports numerous applications due to its wide-ranging input (90-264VAC) that complies with the universal standard. The highly reliable power supply has an output voltage rating ranging from 12V to 24V. This range attributes universal input and fixed mains connectors.

Features and Benefits

Plug-in power supply of 24W
Energy efficiency level VI
Output connector is 5.5 x 2.1 x 12mm DC jack
Input connector is EU plug
European CoC tier 2
class II construction

Certifications

EN55022
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN55024
IEC60950-1
UL/cUL60950-1
EN60950-1

Specifications
Attribute Value
Type Switched Mode Power Supply
Plug Type Type C
Output Voltage 24 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 1A
Maximum Temperature +60°C
Output Connector 2.1 x 5.5 x 12 mm Centre Positive
Input Connector EU Plug
Number of Outputs 1
Power Rating 24W
Cable Length 1.5m
Length 90mm
Series VEL24
Standards Met CCC, CUL/UL 60950-1, EN 55022, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, TUV
Load Regulation 5%
Energy Efficiency Level VI
Minimum Temperature 0°C
Width 34mm
Depth 57.57mm
Available to back order for despatch 05/11/2020
Price Each
£ 12.07
(exc. VAT)
£ 14.48
(inc. VAT)
Units
Per unit
1 - 4
£12.07
5 - 9
£11.71
10 - 24
£11.35
25 - 49
£10.98
50 +
£10.62
