Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

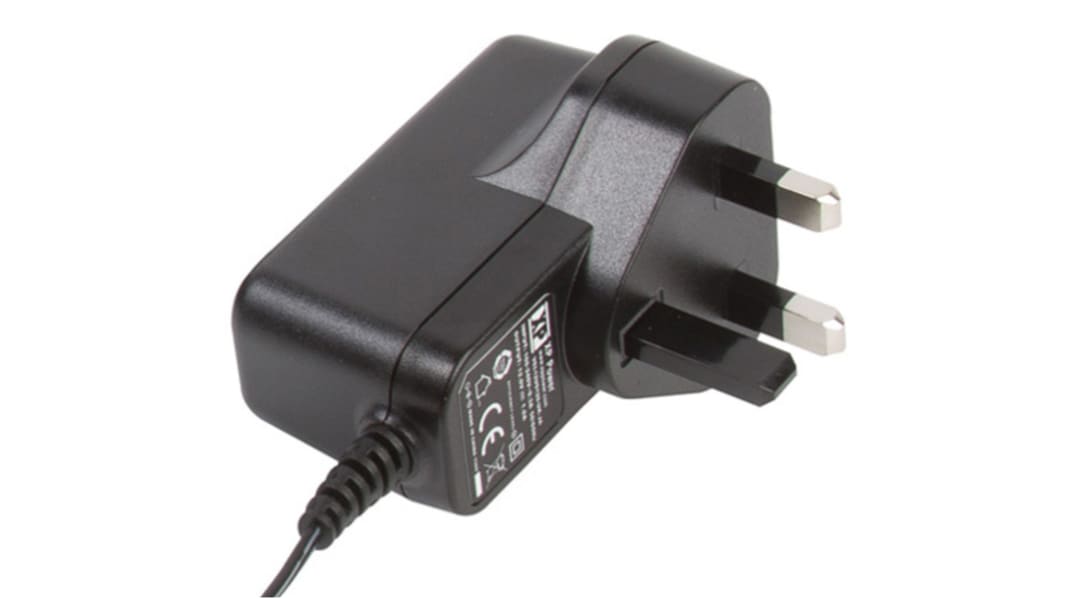

XP Power Supply
The XP Power VEL24 series standard jack plug-in power supply has a regulated output voltage rating of 12VDC and current rating of 2A. It supports numerous applications due to its wide-ranging input (90-264VAC) that complies with the universal standard. The highly reliable power supply has an output voltage rating ranging from 12V to 24V. This range attributes universal input and fixed mains connectors.
Features and Benefits
Plug-in power supply of 24W
Energy efficiency level VI
Output connector is 5.5 x 2.1 x 12mm DC jack
Input connector is UK plug
European CoC tier 2
class II construction
Energy efficiency level VI
Output connector is 5.5 x 2.1 x 12mm DC jack
Input connector is UK plug
European CoC tier 2
class II construction
Certifications
EN55022
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN55024
IEC60950-1
UL/cUL60950-1
EN60950-1
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN55024
IEC60950-1
UL/cUL60950-1
EN60950-1
Specifications
Attribute | Value |
---|---|
Adapter Type | Plug-In Adapter |
Plug Type | Type G |
Output Voltage | 12V dc |
Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
Output Current | 2A |
Maximum Temperature | +60°C |
Output Connector | 2.1 x 5.5 x 12 mm Centre Positive |
Input Connector | UK Plug |
Number of Outputs | 1 |
Power Rating | 24W |
Cable Length | 1.5m |
MTBF | 250kh |
Standards Met | CCC, cUL/UL 60950-1, EN 55022, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, TUV |
Load Regulation | 5% |
Energy Efficiency Level | VI |
Length | 90mm |
Minimum Temperature | 0°C |
Width | 49.5mm |
Depth | 50mm |
Type | AC/DC Adapter |
Series | VEL24 |
