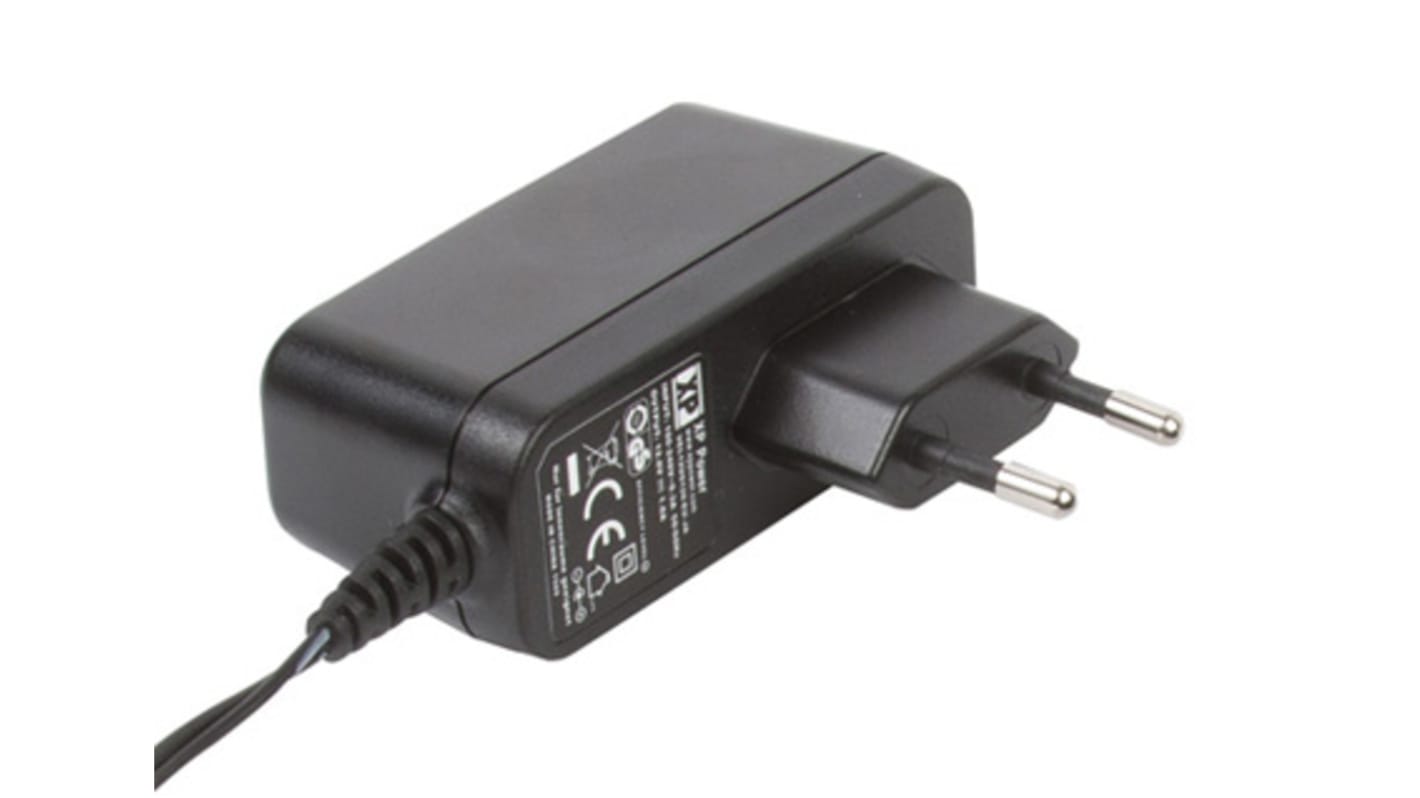

XP Power, 12W Plug In Power Supply 5V dc, 2.1A, Level VI Efficiency, 1 Output Switched Mode Power Supply, Type C

  • RS Stock No. 121-7135
  • Mfr. Part No. VEL12US050-EU-JA
  • Brand XP Power
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

XP Power - VEL12 Series of AC-DC Power Supplies

The VEL12 series from XP Power offers a great range of 12 W plug-in power supplies, all of which feature level VI energy efficiency. These highly reliable power supplies have output voltages from 5.0 V to 12.0 V and all feature a Class II construction. The range, which is available in both barrel jack and USB versions, also attributes a universal input and fixed mains connectors.

12 W plug-in power supplies
Energy efficiency level VI
Barrel jack and USB Versions available
Universal Input
Output voltage from 5.0 V to 12.0 V
Low no load power consumption
Class II construction

Switch Mode - XP Power

Specifications
Attribute Value
Type Switched Mode Power Supply
Plug Type Type C
Output Voltage 5 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 2.1A
Maximum Temperature +60°C
Output Connector 2.1 x 5.5 x 12 mm Centre Positive
Input Connector EU Plug
Number of Outputs 1
Power Rating 12W
Cable Length 1.5m
Depth 39.37mm
Width 29.5mm
Energy Efficiency Level VI
Standards Met CCC, CUL/UL 60950-1, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, TUV
Length 76mm
Minimum Temperature 0°C
Series VEL12
Load Regulation 5%
64 In stock for FREE next working day delivery
Price Each
£ 9.05
(exc. VAT)
£ 10.86
(inc. VAT)
Units
Per unit
1 - 4
£9.05
5 - 9
£8.60
10 - 24
£8.15
25 - 49
£7.70
50 +
£7.23
