- RS Stock No.:
- 121-7077
- Mfr. Part No.:
- AHM250PS24T
- Brand:
- XP Power
Available to back order for despatch 25/11/2024
Price Each
£122.88
(exc. VAT)
£147.46
(inc. VAT)
Units | Per unit |
1 - 4 | £122.88 |
5 - 9 | £119.19 |
10 - 24 | £115.51 |
25 - 49 | £111.82 |
50 + | £108.13 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 121-7077
- Mfr. Part No.:
- AHM250PS24T
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
Product Details

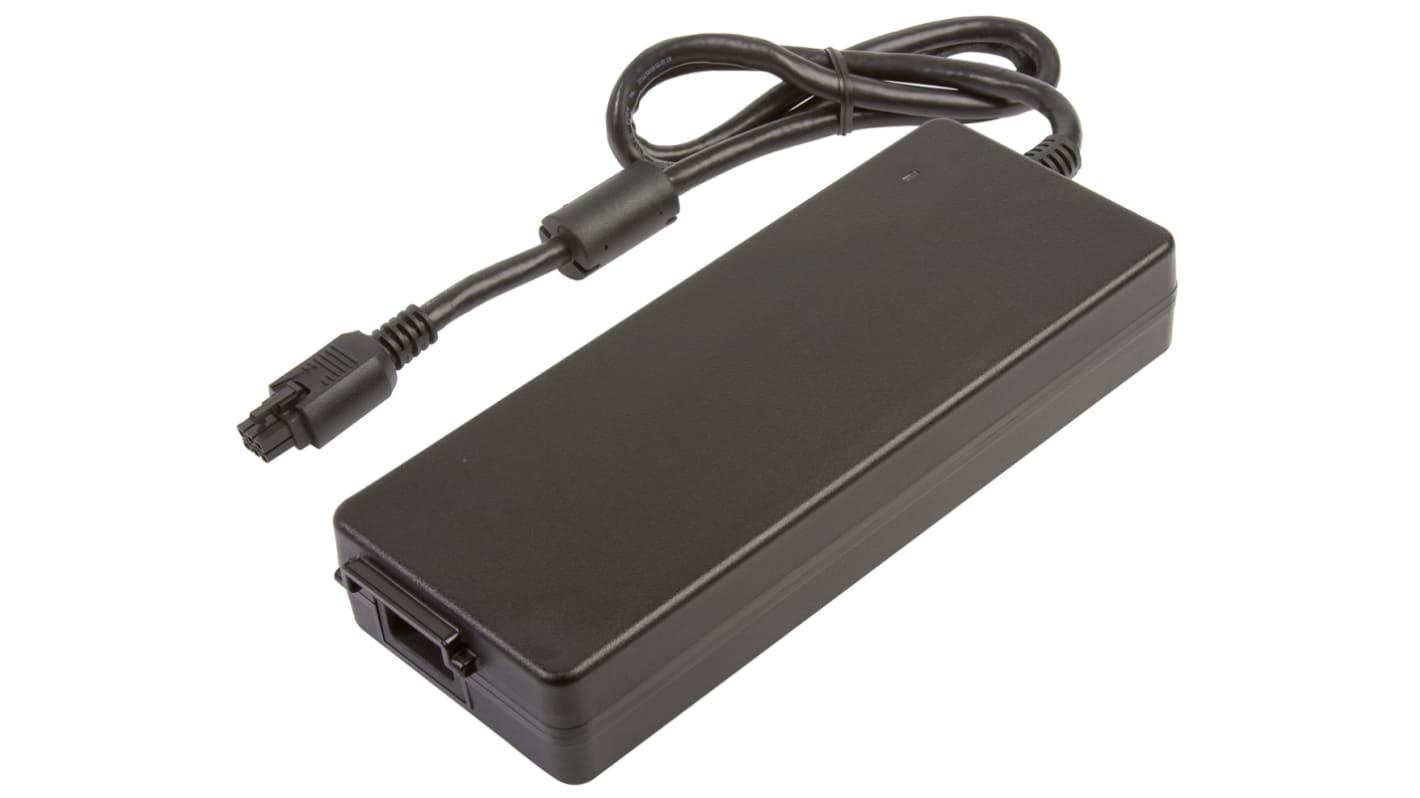

XP Power Desktop Power Supply
The XP Power AHM series plug-in Power unit desktop Power supply has an output voltage rating of 24VDC. It provides 250W of continuous output power in a high-quality, compact enclosure suitable for many general Power applications. It has an input frequency of 47Hz to 63Hz. While the input voltage rating ranging from 80VAC to 264VAC, its maximum output current is 10.41A. It is ideal for many small electrical devices.
Features and Benefits
Energy efficiency level V
Output connection type is DC plug
Load regulation range is 3%
Holdup time is 20ms
Efficiency is 92%
Output connection type is DC plug
Load regulation range is 3%
Holdup time is 20ms
Efficiency is 92%
Certifications
CEC2008
EISA2007
IT and medical approvals
China Compulsory Certification (CCC) qualified
Optional Class II versions
Optional white case versions
EN55011/22/FCC Class B conducted
EN55011/22/FCC Class B radiated
EN61000-3-2, Class A
EN61000-3-3
EN61000-4-2
EN61000-4-3, 3 V/m Perf Criteria A
EN61000-4-4, level 3 Perf Criteria A
EN61000-4-5
Installation class 3 Perf Criteria A
EN61000-4-6, 3 Vrms Perf Criteria A
EN61000-4-8, 3 A/m, Perf Criteria A
EN61000-4-11
UL60950-1
IEC60950-1
EN60601-1 (3rd Ed.)
UL60601-1 (2nd Ed.)
IEC60601-1
EISA2007
IT and medical approvals
China Compulsory Certification (CCC) qualified
Optional Class II versions
Optional white case versions
EN55011/22/FCC Class B conducted
EN55011/22/FCC Class B radiated
EN61000-3-2, Class A
EN61000-3-3
EN61000-4-2
EN61000-4-3, 3 V/m Perf Criteria A
EN61000-4-4, level 3 Perf Criteria A
EN61000-4-5
Installation class 3 Perf Criteria A
EN61000-4-6, 3 Vrms Perf Criteria A
EN61000-4-8, 3 A/m, Perf Criteria A
EN61000-4-11
UL60950-1
IEC60950-1
EN60601-1 (3rd Ed.)
UL60601-1 (2nd Ed.)
IEC60601-1
Specifications
Attribute | Value |
---|---|
Adapter Type | Power Brick Adapter |
Output Voltage | 24V dc |
Input Voltage | 135 → 370 V ac, 90 → 264V ac |
Output Current | 10.41A |
Maximum Temperature | +60°C |
Input Connector | IEC 320-C14 |
Number of Outputs | 1 |
Power Rating | 250W |
Cable Length | 900mm |
Medical Approved | Yes |
Standards Met | ANSI/AAMI ES60601-1, CEC2008, CSA 22.2 No. 60601-1, EISA 2007, EN 55011/22, EN 60601-1, EN 60601-1-2, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, PSE Certified, UL 60950 |
MTBF | 153kh |
Minimum Temperature | 0°C |
Depth | 37mm |
Width | 88.5mm |
Line Regulation Range | ±1.5% |
Load Regulation | ±3% |
Energy Efficiency Level | V |
Length | 223mm |
Series | AHM |
