- RS Stock No.:
- 117-6184
- Mfr. Part No.:
- GST36E05-P1J
- Brand:
- MEAN WELL
Available to back order for despatch 14/06/2024
Added
Price Each
£15.61
(exc. VAT)
£18.73
(inc. VAT)
Units | Per unit |
1 - 4 | £15.61 |
5 - 9 | £15.14 |
10 - 24 | £14.67 |
25 - 49 | £14.20 |
50 + | £13.73 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 117-6184
- Mfr. Part No.:
- GST36E05-P1J
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details

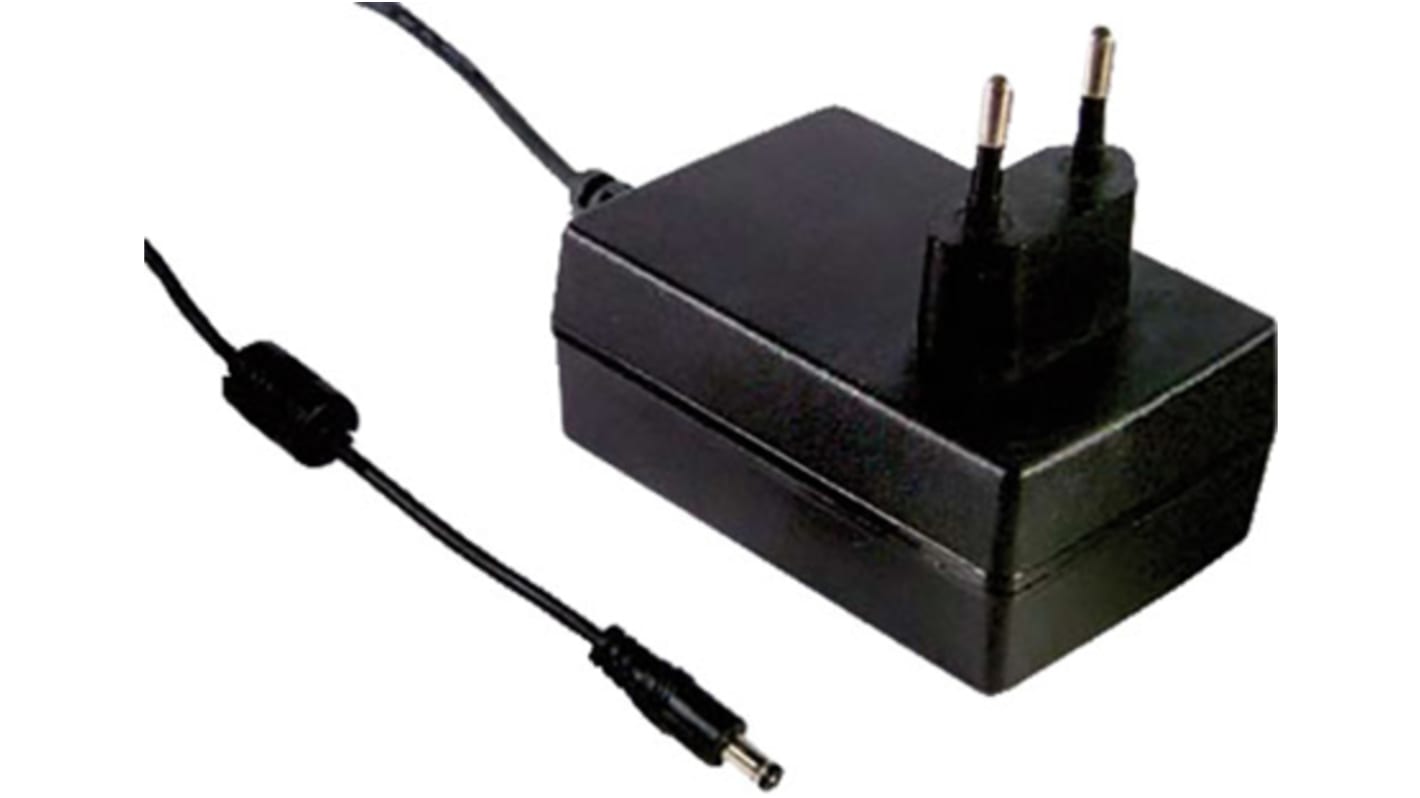

Mean Well GST36E Series Plug-In Power Supply
Mean Well GST36E series of industrial 36 W power supplies offer a highly reliable desktop styled solution to a wide variety of power management solutions. The GST36E series comes equipped with a 2 pole Euro AC inlet, allowing for an input range of 85 V ac to 264 V ac. This series of power supplies boast an efficiency rating of up to 90%, coupled with an extremely low no-load consumption rating of below 0.075 W.
The Mean Well GST36E series is a series of power supplies well suited for both consumer & industrial power solutions.
The Mean Well GST36E series is a series of power supplies well suited for both consumer & industrial power solutions.
Features and Benefits
Level VI energy efficiency rating.
2 pole Euro plug.
Class 2 power with earth pin.
Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
Equipped with industry standard protection, such as short circuit, overload & over voltage.
LED indication of power status.
Operating temperature of up to +70°C.
Typical Applications
Industrial equipment.
Telecoms devices.
Office facilities.
Consumer electronic devices.
Level VI energy efficiency rating.
2 pole Euro plug.
Class 2 power with earth pin.
Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
Equipped with industry standard protection, such as short circuit, overload & over voltage.
LED indication of power status.
Operating temperature of up to +70°C.
Typical Applications
Industrial equipment.
Telecoms devices.
Office facilities.
Consumer electronic devices.
Standards
EU ErP & CoC V.5.
Mean Well Plug-In Power Supply
Specifications
Attribute | Value |
---|---|
Adapter Type | Plug-In Adapter |
Plug Type | Type C |
Output Voltage | 5V dc |
Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
Output Current | 4.3A |
Maximum Temperature | +70°C |
Output Connector | 2.1 x 5.5 x 11 mm Centre Positive |
Input Connector | EU Plug |
Number of Outputs | 1 |
Power Rating | 21.5W |
Cable Length | 1m |
MTBF | 692.3kh |
Standards Met | CB, CE, EN 55022 Class B, EN 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11, GS, MIL-HDBK-217F, TUV EN 60950-1, VI |
Length | 79mm |
Load Regulation | ±5% |
Series | GST36E |
Minimum Temperature | -30°C |
Depth | 33mm |
Type | AC/DC Adapter |
Width | 54mm |
