Tadiran 3.6V Lithium Thionyl Chloride AA Battery

  • RS Stock No. 668-4566
  • Mfr. Part No. SL760/S
  • Brand Tadiran
Technical Reference
Legislation and Compliance
RoHS Status: Exempt
Product Details

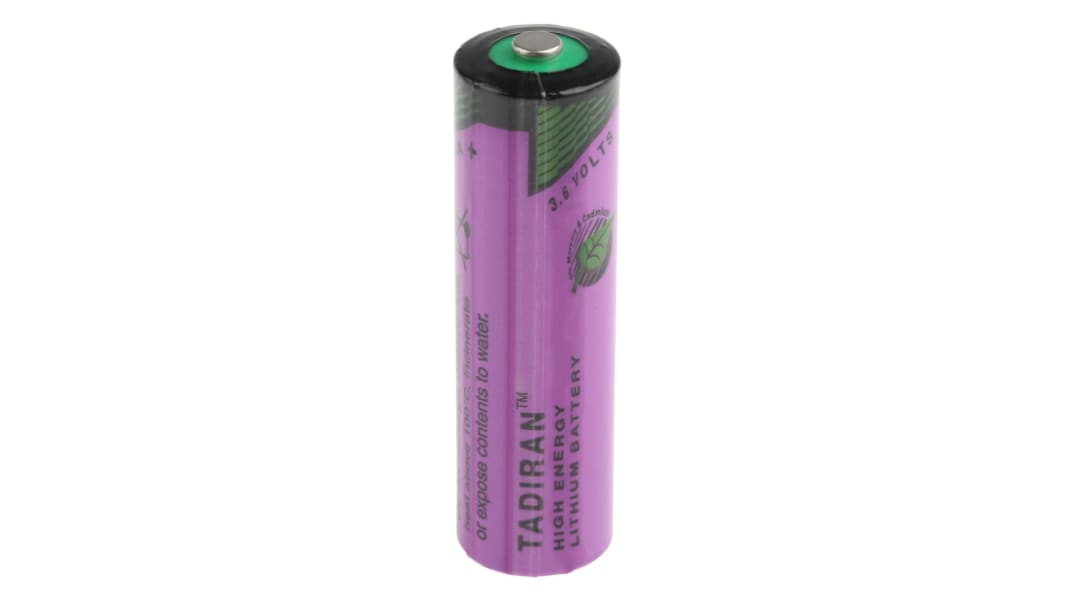

Tadiran Lithium AA Battery

Lithium AA battery from Tadiran, designed for use in applications where a device is used for a long period of time such as utility meters, smoke detectors and alarm systems. These batteries are free from heavy materials, offers a unique construction making them safe and environmentally friendly.

Lithium batteries what are the advantages?

• The nominal voltage of 3.6 V, greater than conventional cells
• Wide temperature range −55゚C to +85゚C
• High energy density, the highest of any primary battery

Features and Benefits

• Lithium Thionyl Chloride
• AA and 1/2 AA
• Greater energy density
• Higher capacity
• Environmentally friendly
• Long-term shelf life and reliability
• 3.6 V
• Standard terminal type

Typical Applications

Lithium AA batteries are used in electronic devices that require a small, compact source of power. Example applications include:

• Utility Meters
• Smoke detectors
• Alarm systems

FAQ’s
Are Lithium Batteries Harmful?

Lithium batteries can sometimes leak a substance called potassium hydroxide which is a caustic agent that can cause eye, skin and respiratory irritations. This risk is reduced by not mixing different manufacturer battery types, batteries of different chemistries and by the replacement of all batteries at the same time.

How to dispose of Alkaline/Lithium Batteries?
Recycle responsibly, a wide range of schemes are available.

Safety Advice
Keep out of sight and reach of children

Guidance:
• Always install the batteries correctly as per instruction
• Ensure that the contact points are clean and conductive
• Do not mix different types of battery
• Do not heat or attempt to recharge the battery
• Do not dispose of in a fire

Approvals

Compliant with IEC 60086-4 safety standard

Specifications
Attribute Value
Chemistry Lithium Thionyl Chloride
Nominal Voltage 3.6V
Terminal Type Standard
Capacity 2.2Ah
Size AA
2146 In stock for FREE next working day delivery
Price Each
£ 6.25
(exc. VAT)
£ 7.50
(inc. VAT)
Units
Per unit
1 - 19
£6.25
20 - 49
£5.95
50 +
£5.62
