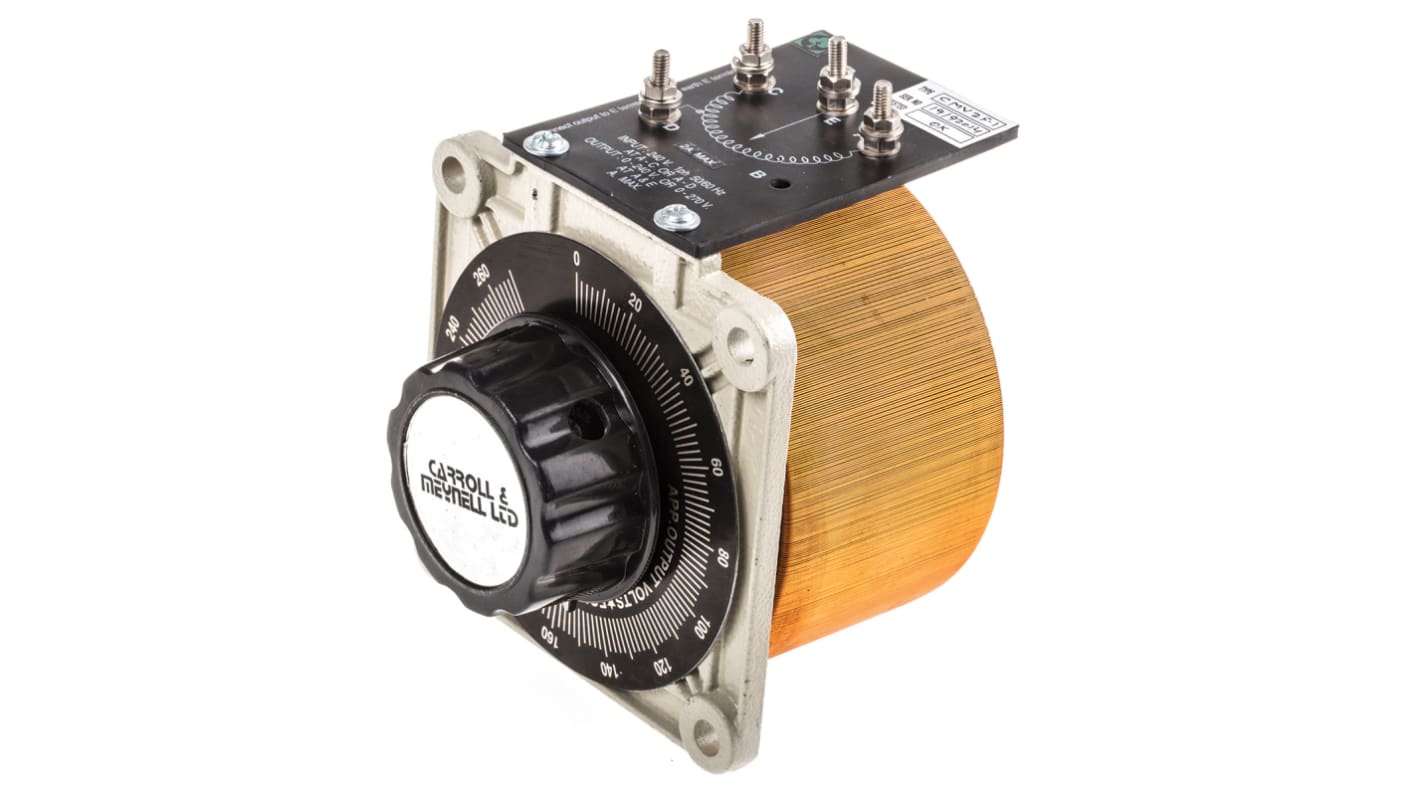

Carroll & Meynell 1 Phase 480VA Variac, 1 Output, 240V ac
- RS Stock No.:
- 347-3580
- Mfr. Part No.:
- CMV 2F-1
- Brand:
- Carroll & Meynell
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£80.18
(exc. VAT)
£96.22
(inc. VAT)
- RS Stock No.:
- 347-3580
- Mfr. Part No.:
- CMV 2F-1
- Brand:
- Carroll & Meynell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carroll & Meynell | |
| Primary Voltage Rating | 240V ac | |
| Secondary Voltage Rating | 0 → 240 V ac, 0 → 270 V ac | |
| Power Rating | 480VA | |
| Mounting Type | Screw Mount | |
| Knob Rotation | Clockwise | |
| Number of Phases | 1 | |
| Number of Outputs | 1 | |
| Termination Type | Screw, Stud | |
| Weight | 3kg | |
| Dimensions | 133 x 110 x 131mm | |
| Depth | 131mm | |
| Length | 133mm | |
| Width | 110mm | |
Select all | ||
|---|---|---|
Brand Carroll & Meynell | ||
Primary Voltage Rating 240V ac | ||
Secondary Voltage Rating 0 → 240 V ac, 0 → 270 V ac | ||
Power Rating 480VA | ||
Mounting Type Screw Mount | ||
Knob Rotation Clockwise | ||
Number of Phases 1 | ||
Number of Outputs 1 | ||
Termination Type Screw, Stud | ||
Weight 3kg | ||
Dimensions 133 x 110 x 131mm | ||
Depth 131mm | ||
Length 133mm | ||
Width 110mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- IN
Variable Auto Transformers
Continuously variable alternating current (a.c.) output voltage
Rugged construction
Low operating torque
High efficiency/excellent regulation
Rugged construction
Low operating torque
High efficiency/excellent regulation
Silver-plated commutator
Low magnetising current
No waveform distortion, smooth linear output & overload capacity
Screw terminals
Complete with knob and dial
Low magnetising current
No waveform distortion, smooth linear output & overload capacity
Screw terminals
Complete with knob and dial
