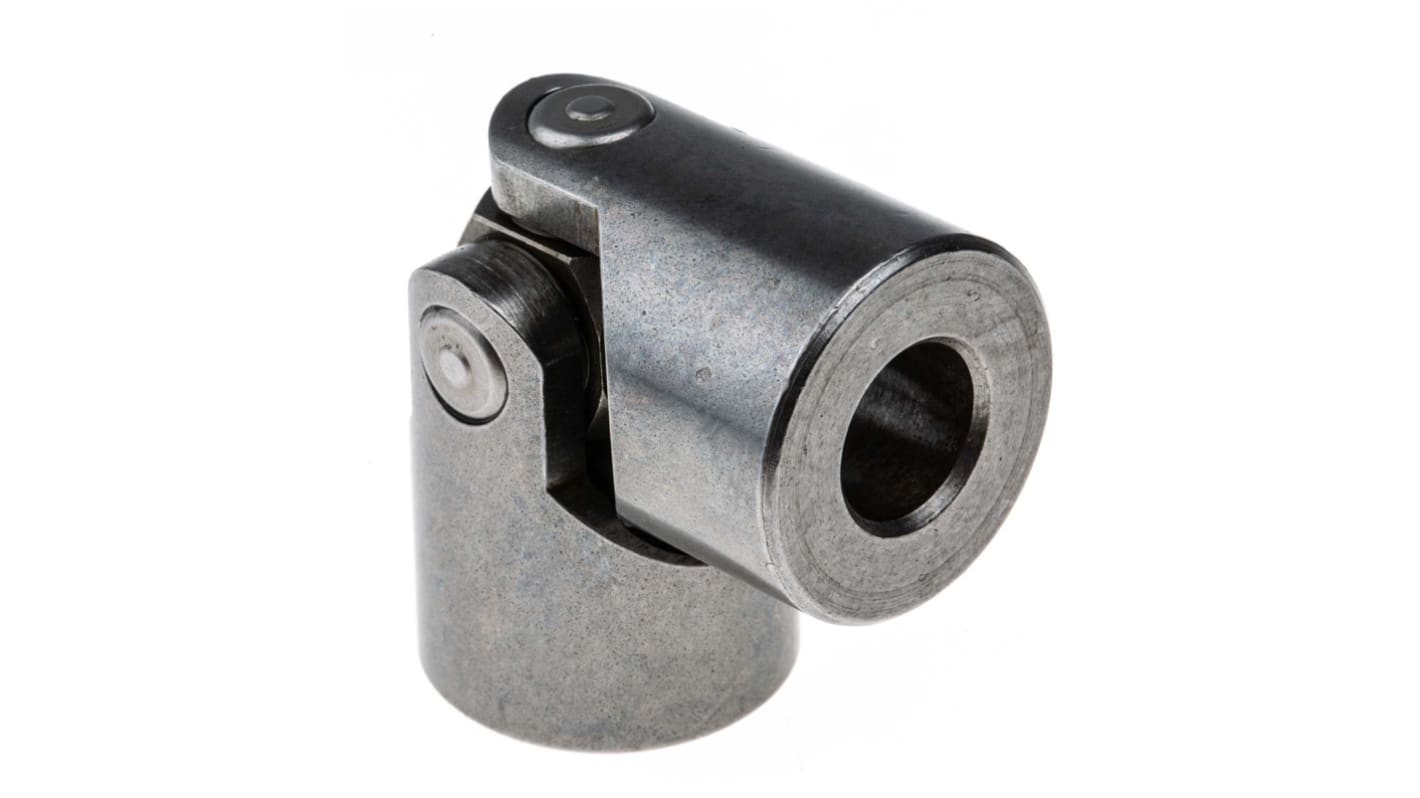

RS PRO Universal Joint, Single, Needle Roller, Bore 10mm, 48mm Length
- RS Stock No.:
- 790-6772
- Brand:
- RS PRO
8 In stock - FREE next working day delivery available
18 available from Europe for delivery within 1 working day(s).
Price Each
£58.72
(exc. VAT)
£70.46
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £58.72 |
| 5 - 9 | £57.54 |
| 10 - 24 | £56.37 |
| 25 + | £55.19 |
- RS Stock No.:
- 790-6772
- Brand:
- RS PRO
RS PRO Universal Joint, Single, Needle Roller, Bore 10 mm, 48 mm Length
Connect misalignments on line shafts, conveyors and other machinery with this handy universal joint from RS PRO. It has a 10 mm bored hub with a needle roller bearing. The solid steel joint is maintenance-free, thanks to the lifetime lubrication of the bearing.
This universal joint has a bored hub, which has an outer diameter of 22 mm and is 12 mm long. The overall length of the joint is 48 mm. It can be used at speeds up to 4,000 rpm (rotations per minute) and at a peak torque of 200 Nm. The maximum possible working angle of the misalignment to be joined is 45°.
Part of the reliable RS PRO range, this product has been exhaustively tested to ensure safety and consistency. Joints of this type are typically used to connect shafts in manufacturing machinery and jack lift systems, for example.
This universal joint has a bored hub, which has an outer diameter of 22 mm and is 12 mm long. The overall length of the joint is 48 mm. It can be used at speeds up to 4,000 rpm (rotations per minute) and at a peak torque of 200 Nm. The maximum possible working angle of the misalignment to be joined is 45°.
Part of the reliable RS PRO range, this product has been exhaustively tested to ensure safety and consistency. Joints of this type are typically used to connect shafts in manufacturing machinery and jack lift systems, for example.
Features and Benefits
• Universal joint
• Needle roller type joint
• Single joint
• Bored hub type
• Bore size of 10 mm
• Made from steel
• Maximum speed of 4,000 rpm
• Outer diameter (hub) of 22 mm
• Overall length of 48 mm
• Hub length of 12 mm
• Weight of 100 g
• Maximum working angle of 45°
• Peak torque of 200 Nm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
• Needle roller type joint
• Single joint
• Bored hub type
• Bore size of 10 mm
• Made from steel
• Maximum speed of 4,000 rpm
• Outer diameter (hub) of 22 mm
• Overall length of 48 mm
• Hub length of 12 mm
• Weight of 100 g
• Maximum working angle of 45°
• Peak torque of 200 Nm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Attribute | Value |
|---|---|
| Bore | 10mm |
| Number of Joints | Single |
| Hub Outer Diameter | 22mm |
| Overall Length | 48mm |
| Joint Type | Needle Roller |
| Hub Type | Bored Hub |
| Maximum Working Angle | 45° |
| Peak Torque | 200Nm |
| Material | Steel |
| Maximum Speed | 4000rpm |
