All switches have a contact configuration of SPST N/O

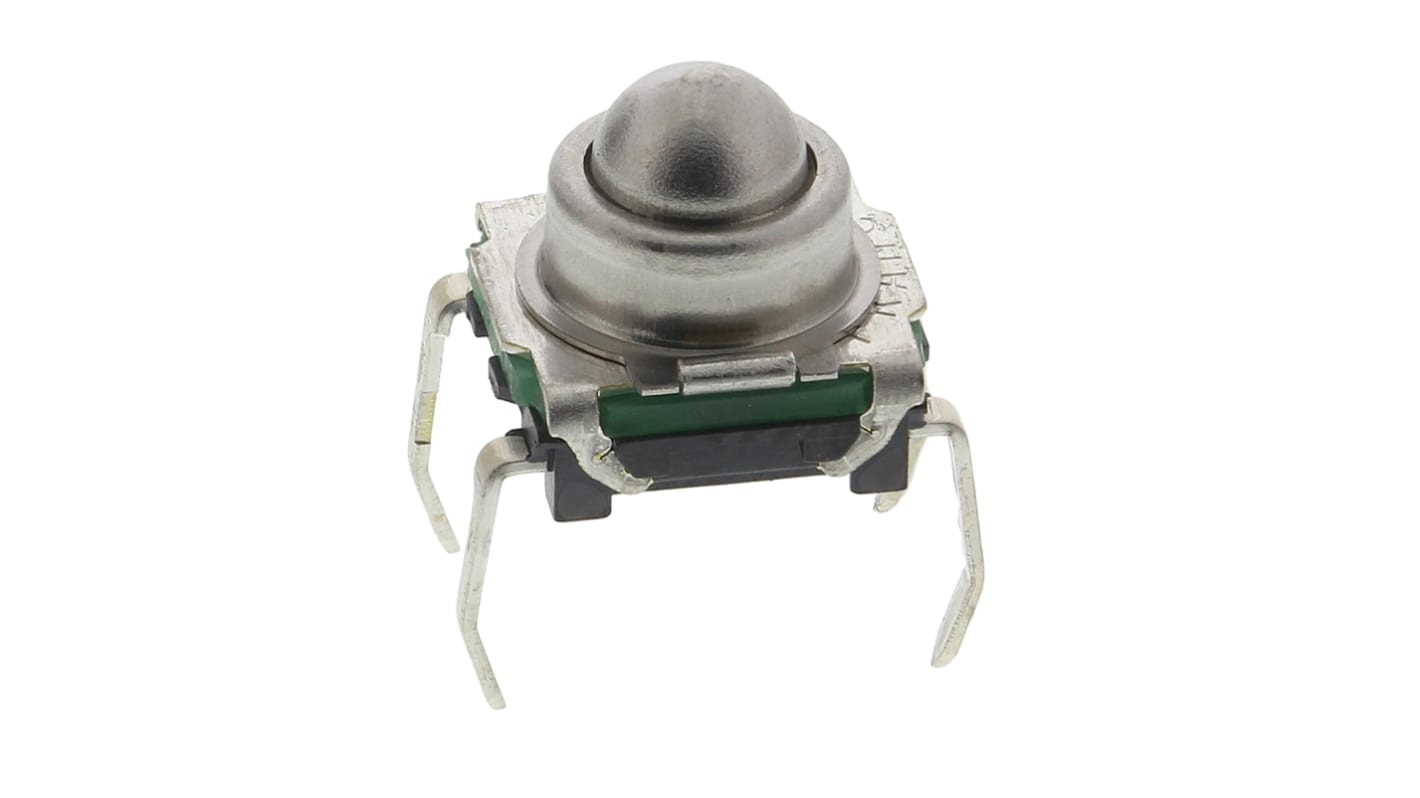

Designed for manual insertion The ball actuated type can be used in applications where the actuation force is out of line with the vertical. A tolerance of up to ±30° can be accommodated Insulation resistance: >100GΩ at 100Vdc Sealed against soldering flux Average travel 0.3mm
Note
Colour of switch button depends on operating force selected. Suitable Buttons are available for use with stk no. 102-355 only, see stk no. 484-6591 etc. The vertical / horizontal orientation applies to the switch body not to the actuator.
Tactile
Attribute
Value
Contact Configuration
SPST
Terminal Type
Through Hole
Switch Operation
Off-(On)
Actuator Length
1.95mm
Actuator Colour
Silver
Actuator Type
Button
Mounting Type
Through Hole
Contact Current Rating
50 mA @ 32 V dc
IP Rating
IP60
Voltage Rating
32V dc
Operating Force
3 N
Contact Material
Silver
Priced to Clear
Yes
Minimum Operating Temperature
-40°C
Mechanical Life
100000Operations
Maximum Operating Temperature
+85°C
