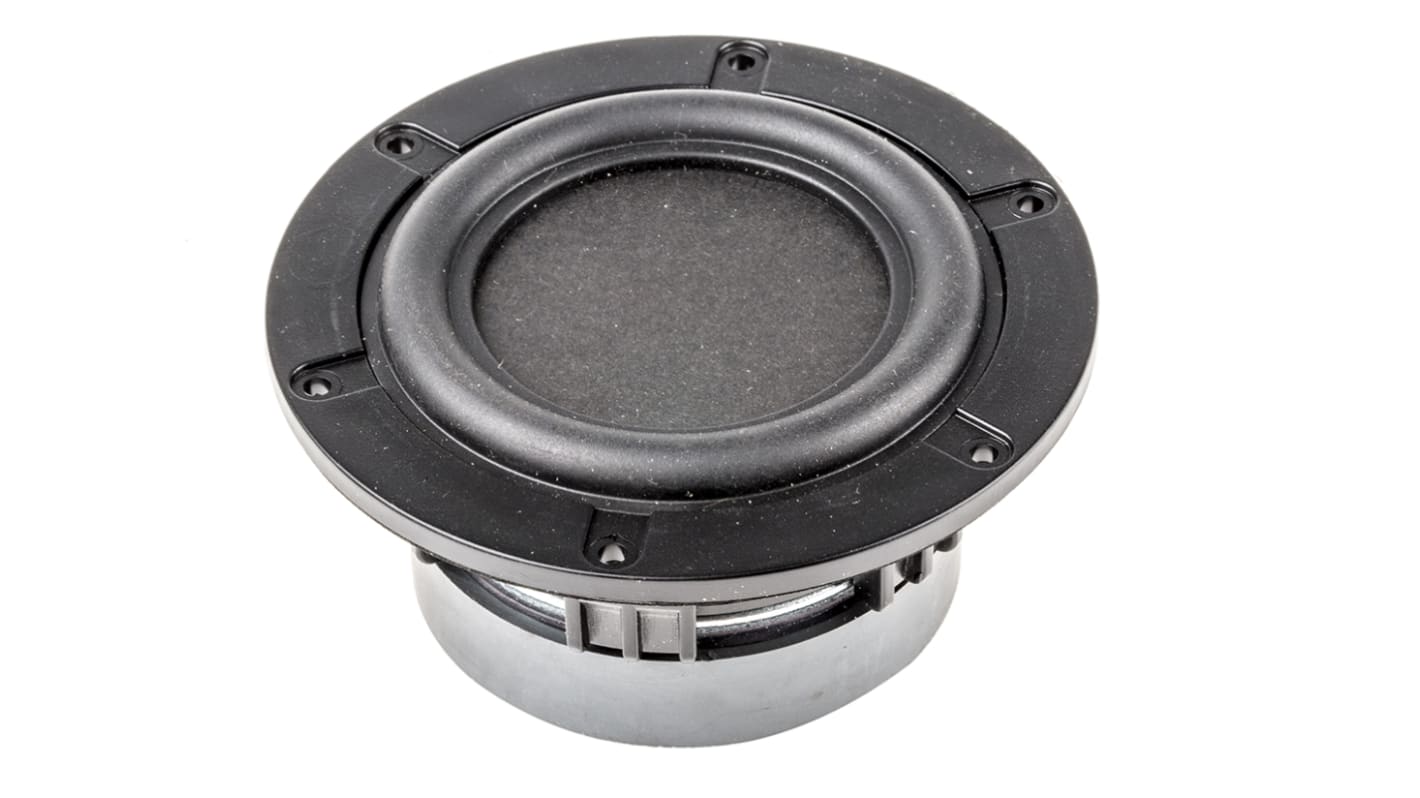

The Tectonic Elements range of BMR® drivers are unique full-range audio loudspeaker units. Exhibiting an extended frequency response and wider directivity when compared with typical conventional drive units. The benefits of Tectonic Elements bending-wave technology and pistonic mode of operation combine to produce an ideal solution for audio applications that requires a full-range, high performance compact acoustic solution. These compact drive units are available in various form factors. And are ideally suited for a wide range of markets including consumer electronics, professional audio, automotive and industrial.
Features:
Full range, extended frequency response Wide sound dispersion Advanced magnet motor systems Compact dimensions Square, circular, and rectangular form factors available Patented technology Some units available in 4 Ω or 8 Ω impedance
Typical Applications:
Table radios Sound bars Home Theatre & Hi-Fi TV speakers Portable speakers Wireless speakers
Attribute
Value
Speaker Part
Speaker Driver
Nominal Rated Power
30W
Impedance
8Ω
Frequency Type
Full Range
Diameter
108mm
Driver Shape
Round
Frequency Response
60 Hz → 20 kHz
Depth
56.82mm
Weight
685g
Maximum Frequency Response
20 kHz
Minimum Frequency Response
60 Hz
Maximum Rated Power
>60W
