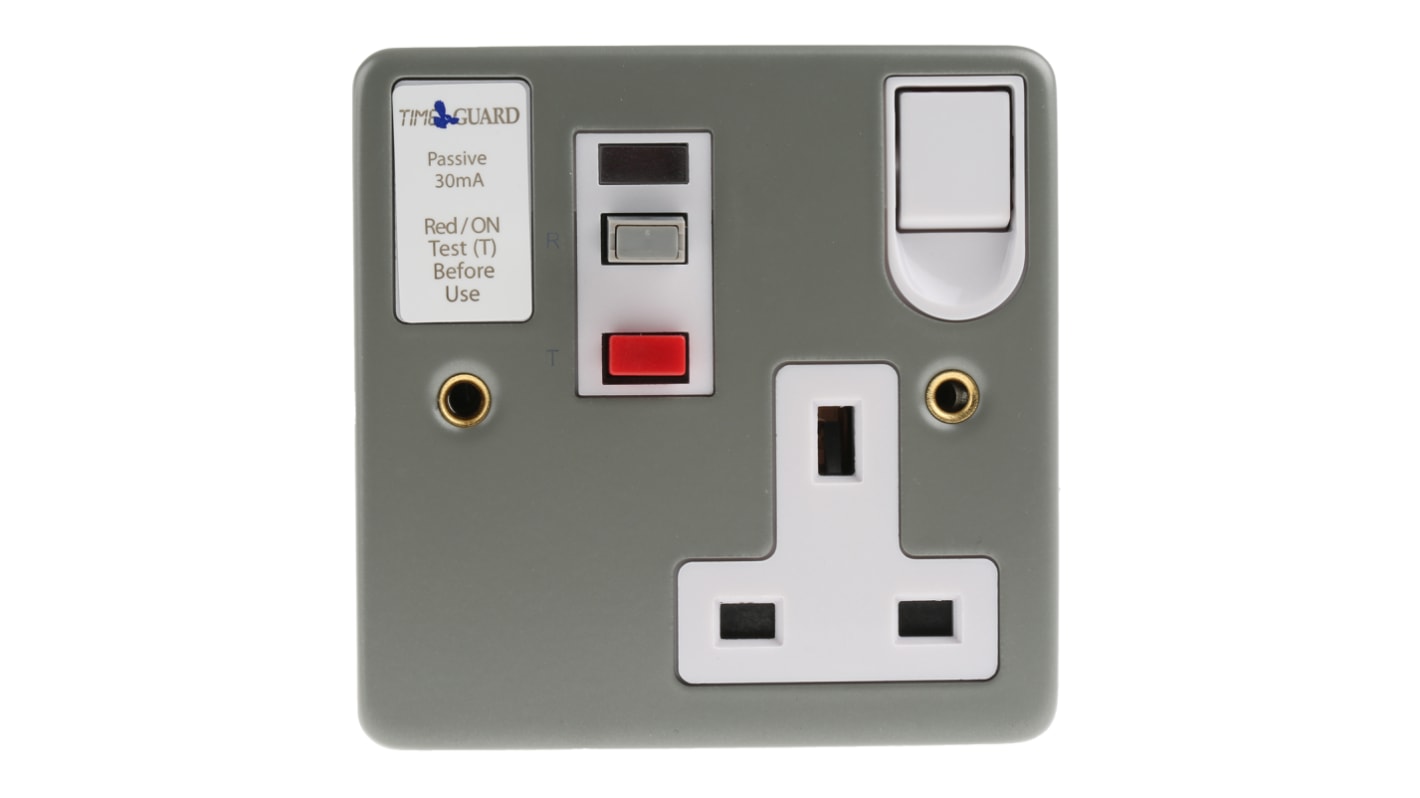

Timeguard Tripfast 13A, BS Fixing, Passive, Single Gang RCD Socket, Steel, Surface Mount , Switched, 230 V ac, Silver
- RS Stock No.:
- 185-019
- Mfr. Part No.:
- TFP04ML
- Brand:
- Theben / Timeguard
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£52.10
(exc. VAT)
£62.52
(inc. VAT)
- RS Stock No.:
- 185-019
- Mfr. Part No.:
- TFP04ML
- Brand:
- Theben / Timeguard
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Theben / Timeguard | |
| Material | Steel | |
| Socket Type | BS 1363 | |
| Number of Gangs | 1 | |
| RCD Type | Passive | |
| Series Name | Tripfast | |
| Colour | Silver | |
| Mounting Style | Surface Mount | |
| Switched | Yes | |
| Trip Speed | 40ms | |
| Faceplate Depth | 18mm | |
| Current Rating | 13A | |
| Voltage Rating | 230 V ac | |
| Switch Style | Rocker | |
| Minimum Box Depth | 25mm | |
| Number of Poles | 2 | |
| Series | Tripfast | |
| Height | 87mm | |
| Trip Current | 30mA | |
| Faceplate Mounting Type | Screwed | |
| Width | 87mm | |
| Earth Terminal | Yes | |
| Fixing Standard | BS | |
Select all | ||
|---|---|---|
Brand Theben / Timeguard | ||
Material Steel | ||
Socket Type BS 1363 | ||
Number of Gangs 1 | ||
RCD Type Passive | ||
Series Name Tripfast | ||
Colour Silver | ||
Mounting Style Surface Mount | ||
Switched Yes | ||
Trip Speed 40ms | ||
Faceplate Depth 18mm | ||
Current Rating 13A | ||
Voltage Rating 230 V ac | ||
Switch Style Rocker | ||
Minimum Box Depth 25mm | ||
Number of Poles 2 | ||
Series Tripfast | ||
Height 87mm | ||
Trip Current 30mA | ||
Faceplate Mounting Type Screwed | ||
Width 87mm | ||
Earth Terminal Yes | ||
Fixing Standard BS | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
RCD Metal Clad Sockets
Available with Single and 2 gang width.
Standards
BS1363; BS7288
Timeguard RCD's
Current Rating 13A
Voltage Rating 220 - 240Vac
Trip Current 30mA
Trip Time 40ms
Conforms to BS1363 and BS7288
Voltage Rating 220 - 240Vac
Trip Current 30mA
Trip Time 40ms
Conforms to BS1363 and BS7288
Designed to provide protection against the risk of electrocution and fire hazards.
Passive circuitry - power is restored immediately after a power failure.
Active circuitry - power is only restored after device has been manually reset, thus protecting against equipment suddenly re-energising.
Passive circuitry - power is restored immediately after a power failure.
Active circuitry - power is only restored after device has been manually reset, thus protecting against equipment suddenly re-energising.
