Molex KK 254 Series Straight Through Hole Pin Header, 3 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 679-5587
- Mfr. Part No.:
- 22-23-2031
- Brand:
- Molex
2640 In stock - FREE next working day delivery available
320 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.22
(exc. VAT)
£0.26
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 240 | £0.22 | £2.20 |
| 250 - 990 | £0.194 | £1.94 |
| 1000 - 4990 | £0.16 | £1.60 |
| 5000 - 9990 | £0.153 | £1.53 |
| 10000 + | £0.147 | £1.47 |
| *price indicative | ||
- RS Stock No.:
- 679-5587
- Mfr. Part No.:
- 22-23-2031
- Brand:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
Straight Header, 6373 Series
Mates with 2695; 6471, 7880; 4455 and 7720 Series housings

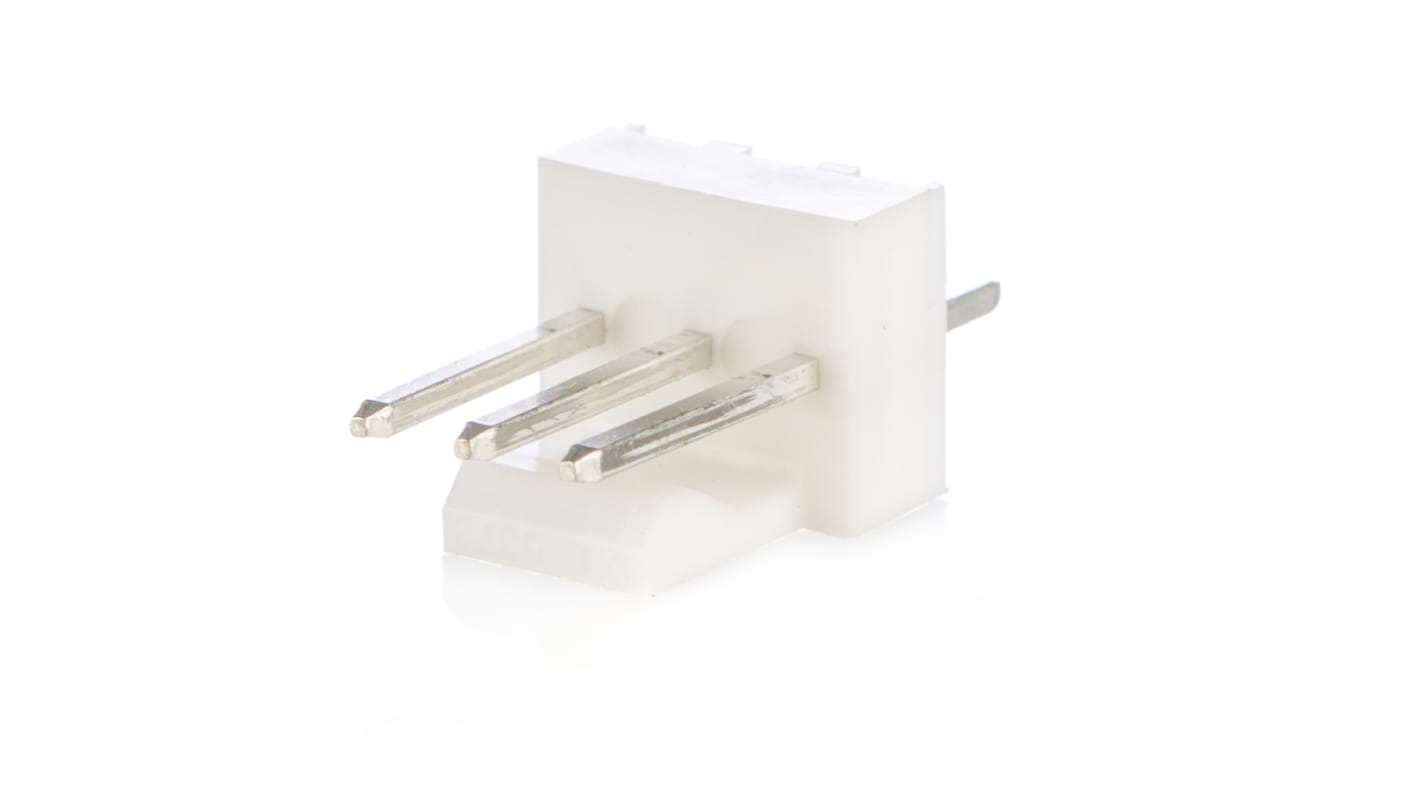

Molex PCB Straight Pin Header, 2.54mm Pitch, 3 Way - 6373 Series - 22-23-2031
Connect three wires securely to a PCB (printed circuit board) with this straight pin header from Molex. Its narrow 2.54mm pitch suits low-power and signal applications, and the unit accommodates up to 4A per contact with a total capacity of 250V. The three pins lock into place on your PCB and are designed to be soldered down to keep the connection reliable and prevent accidental disconnection. This means you can use the header even with equipment where high levels of vibration are likely.
Features & Benefits
• Fire-resistant construction means any burning in the unit stops after just 10 seconds
• Tin-plated brass contacts have high corrosion resistance to prevent wear over time
• Nylon housing material is tough and resists chemical contamination, for long life
• Low halogen content prevents toxic fumes in the event of a fire outbreak
• Tin-plated brass contacts have high corrosion resistance to prevent wear over time
• Nylon housing material is tough and resists chemical contamination, for long life
• Low halogen content prevents toxic fumes in the event of a fire outbreak
Applications
• Medical equipment
• Telecommunications
• Automotive equipment
• Security systems
• Telecommunications
• Automotive equipment
• Security systems
Does this straight pin header connect to other Molex products?
Yes, this straight pin header mates with Molex crimp housing and PCB connectors to keep wires secure and well insulated when you connect them to your PCB.
Specifications
Attribute | Value |
|---|---|
| Series | KK 254 |
| Pitch | 2.54mm |
| Number of Contacts | 3 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire to Board |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Tin |
| Contact Material | Brass |
| Current Rating | 4A |
| Series Number | 6373 |
| Voltage Rating | 250.0 V |
