• RS Stock No. 420-533
  • Brand ETA
  • Mfr. Part No. X3120-M1P7-16
ETA
2 Pole Non-Fused Switch Disconnector, 16 A
Image representative of range
Product Details

3120 Series Magnetic Conversion Module

’Snap-fit’ magnetic modules to convert any of the 3120 series thermal circuit breakers to thermal/magnetic operation.
Two modules are available, with current ranges of 2.5 - 8A and 10 - 16A respectively

Approvals

UL, CSA, VDE, BUR, LRos, ABS

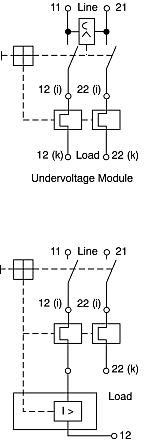

//media.rs-online.com/t_line/L420404-01.gif

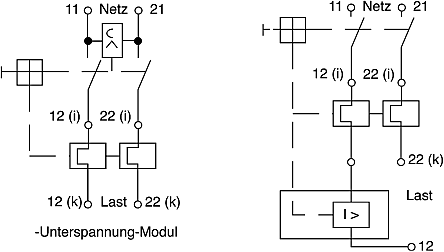

//media.rs-online.com/t_line/LD420404-02.gif

Approvals

UL, CSA, VDE, BUR, LRoS, ABS

Thermal Magnetic Convertible

All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Number of Poles2
Maximum Current16 A
Voltage Rating250 V ac
Switch Rating16 A
Width23.5mm
Throw ConfigurationDouble
Select all
Customer reviews

Add a review - Log In

Discontinued product
Technical Reference
  • RS Components

    Statement of conformity


    The product detailed below complies with the specifications published by RS Components. Where applicable it provides assurance that electrostatic discharge sensitive devices have been handled and packed under conditions that meet the administrative and technical requirements of the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards.
    RS Stock No. 420-533
    Description 2 Pole Non-Fused Switch Disconnector, 16 A
    Manufacturer/Brand: ETA
    Mfr. Part No. X3120-M1P7-16
    The foregoing information relates to product sold on, or after, the date shown below.
    RS COMPONENTS
    Date Sep 24, 2017
    RS Components Ltd, Birchington Road, Corby, Northamptonshire, NN17 9RS, UK
