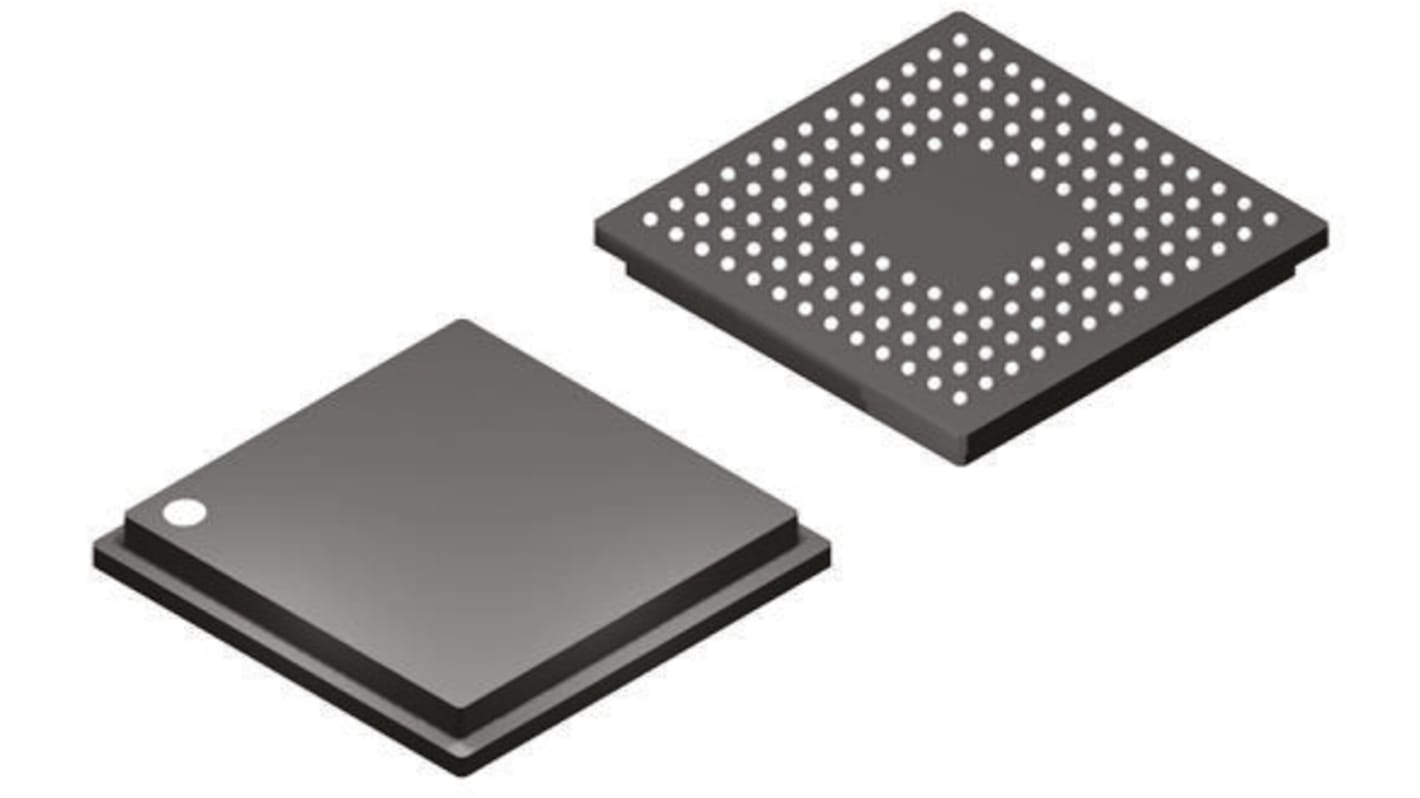

NXP, 32bit ARM Cortex M4, Kinetis K6x Microcontroller, 120MHz, 640 kB Flash, 144-Pin MAPBGA

View all Microcontrollers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
840-6579
Mfr. Part No.:
MK64FX512VMD12
Brand:
NXP
Find similar products by selecting one or more attributes.
Select all

Brand

NXP

Family Name

Kinetis K6x

Package Type

MAPBGA

Mounting Type

Surface Mount

Pin Count

144

Device Core

ARM Cortex M4

Data Bus Width

32bit

Program Memory Size

640 kB

Maximum Frequency

120MHz

RAM Size

260 kB

USB Channels

1

Number of PWM Units

4

Number of SPI Channels

3

Number of I2C Channels

3

Number of UART Channels

6

Number of CAN Channels

1

Number of USART Channels

0

Typical Operating Supply Voltage

1.71 → 3.6 V

Width

13mm

Number of ADC Units

2

Maximum Operating Temperature

+105 °C

Number of LIN Channels

0

Dimensions

13 x 13 x 1.7mm

Number of Ethernet Channels

1

Height

1.7mm

ADCs

41-ch x 16-bit, 4-ch x 16-bit

Length

13mm

Pulse Width Modulation

2 (2)-Quad Decoder, 2 (8)-Motor Control

Number of PCI Channels

0

Minimum Operating Temperature

-40 °C

Instruction Set Architecture

ARM

Program Memory Type

Flash

Maximum Number of Ethernet Channels

1

Kinetis K6x Series Microcontrollers


The Kinetis K6x MCUs are pin-peripheral and software-compatible with many of the Kinetis K series MCU families, offering IEEE® 1588 Ethernet and full and high-speed USB 2.0 On-The-Go, including options with USB crystal-less functionality. Devices start from 256 KB of flash in 100 QFP packages extending up to 1MB flash and 256KB SRAM in a 256 MAPBGA package. These devices offer various levels of integration, with a rich suite of analogue, communication, timing and control peripherals. Next-generation Kinetis K6x MCUs are further optimized for performance and power consumption and offer more streamlined integration for further BOM cost reductions. The K6x Ethernet MCUs are Energy-Efficient Product Solutions.

Note

NXP is a trademark of NXP B.V.


The Kinetis range of ARM Cortex core microcontrollers consists of multiple hardware- and software-compatible Cortex-M0+ and Cortex-M4 MCU families with exceptional low-power performance, memory scalability and feature integration. Families range from the entry-level Cortex-M0+ Kinetis L Series to the high-performance, feature-rich Cortex-M4 Kinetis K and include a wide selection of analogue, communication, HMI, connectivity and security features.
