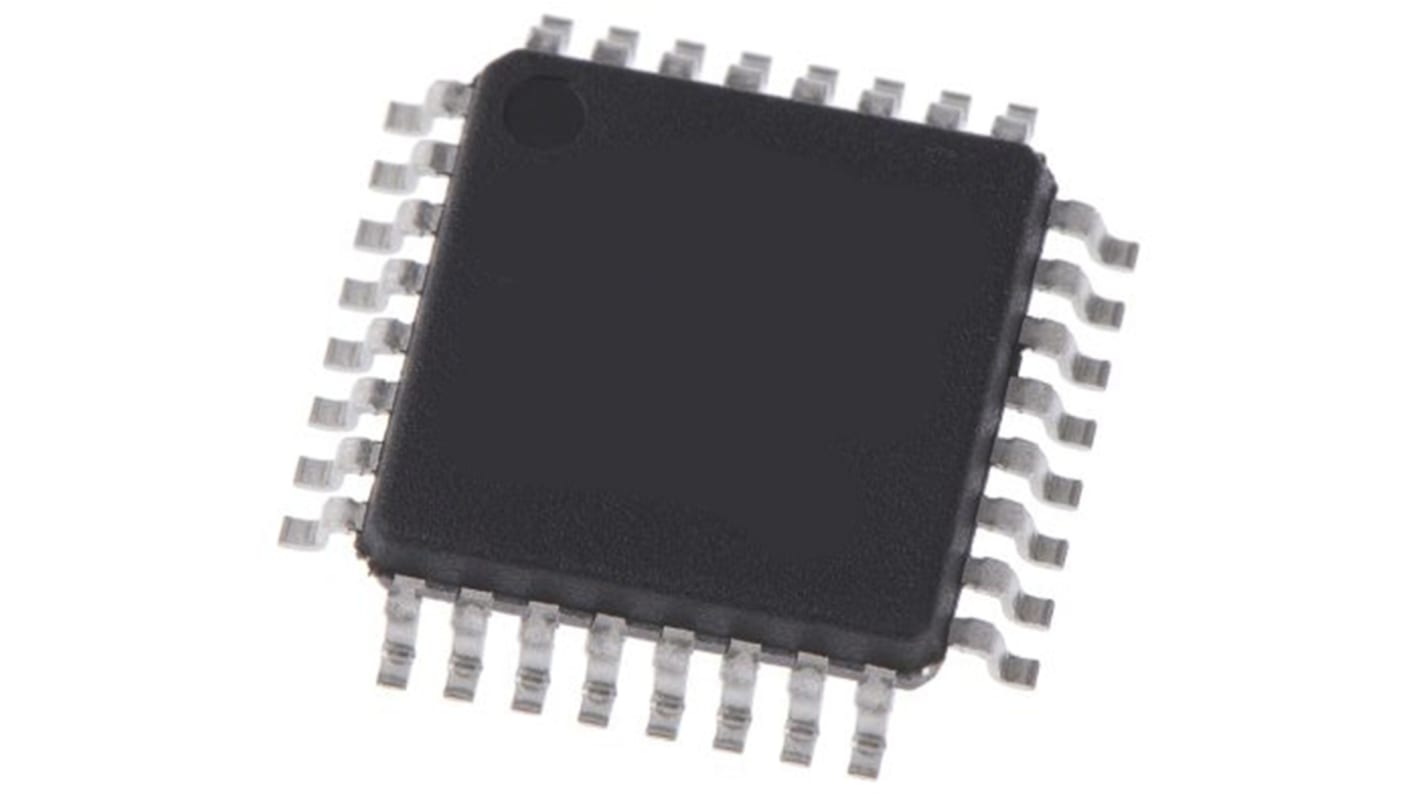

Renesas Electronics R5F21134FP, 16bit R8C/13 Microcontroller, R8C, 20MHz, 16 kB, 4 kB Flash, 32-Pin LQFP
- RS Stock No.:
- 621-1054
- Mfr. Part No.:
- R5F21134FP
- Brand:
- Renesas Electronics
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 621-1054
- Mfr. Part No.:
- R5F21134FP
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details
R8C/1x Series 16-Bit Microcontrollers, Renesas Electronics
The R8C/1x Series has enough on-chip peripheral functions for use as a control microcontroller for a small system.
Maximum operating frequency of 20MHz
Operating voltage range 2.7V to 5.5V
Standard on-chip peripherals include 8-bit Multifunction Timers, 16-bit Timers, UART/Clock Synchronous Serial Interface, Voltage Detection Circuit, Power-On Reset Circuit, High/Low-speed On-chip Oscillator, Watchdog Timer
Come in small packages of 20-pins (SSOP) or 28-pins (QFN)
Operating voltage range 2.7V to 5.5V
Standard on-chip peripherals include 8-bit Multifunction Timers, 16-bit Timers, UART/Clock Synchronous Serial Interface, Voltage Detection Circuit, Power-On Reset Circuit, High/Low-speed On-chip Oscillator, Watchdog Timer
Come in small packages of 20-pins (SSOP) or 28-pins (QFN)
R8C Family Microcontrollers, Renesas Electronics
The Renesas 16-bit CISC microcontrollers of the R8C Family features high ROM code efficiency, superb noise performance, low power consumption and a high processing performance. This includes the advantage of abundant on-chip peripherals such as comprehensive timer functions and various serial communication functions. The R8C Family also retains compatibility with the M16C Family, so software resources and development tools can be shared.
Renesas R8C Family supports a wide range of application fields like Automotive, Consumer Products, Office Equipment and Industrial Equipment.
Renesas R8C Family supports a wide range of application fields like Automotive, Consumer Products, Office Equipment and Industrial Equipment.
Specifications
Attribute | Value |
|---|---|
| Family Name | R8C |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | R8C/13 |
| Data Bus Width | 16bit |
| Program Memory Size | 16 kB, 4 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 1 kB |
| USB Channels | 0 |
| Number of SPI Channels | 0 |
| Number of CAN Channels | 0 |
| Number of UART Channels | 2 |
| Number of USART Channels | 0 |
| Number of I2C Channels | 0 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Program Memory Type | Flash |
| Dimensions | 7.1 x 7.1 x 1.4mm |
| Instruction Set Architecture | CISC |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
| Height | 1.4mm |
| Number of LIN Channels | 0 |
| Minimum Operating Temperature | -20 °C |
| Width | 7.1mm |
| ADCs | 12 x 10 bit |
| Length | 7.1mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
