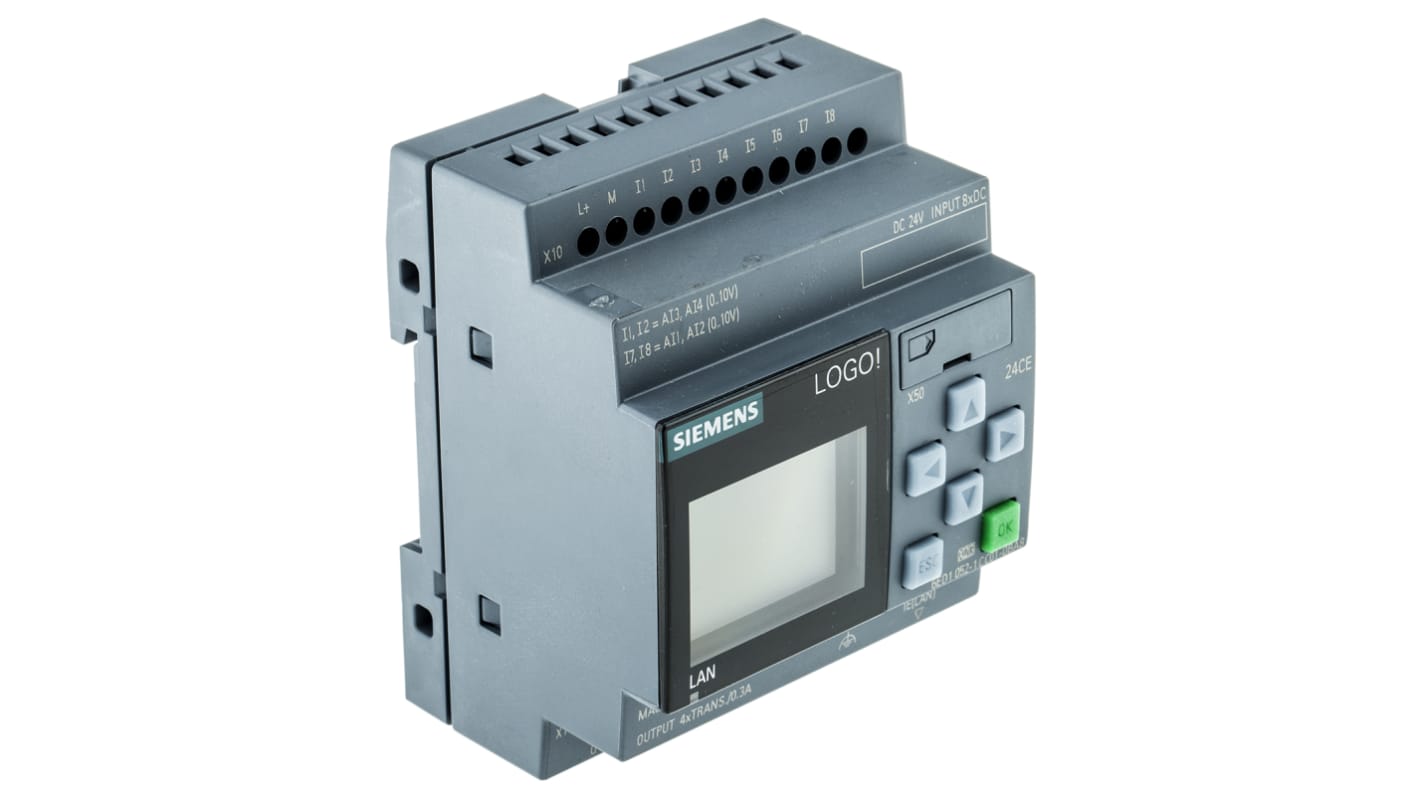

Siemens LOGO! 8 Logic Module, 24 V dc Digital, 8 x Input, 4 x Output With Display
- RS Stock No.:
- 825-1666
- Mfr. Part No.:
- 6ED1052-1CC01-0BA8
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£101.00
(exc. VAT)
£121.20
(inc. VAT)
- RS Stock No.:
- 825-1666
- Mfr. Part No.:
- 6ED1052-1CC01-0BA8
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Manufacturer Series | LOGO! 8 | |
| Number of Inputs | 8 | |
| Output Type | Digital | |
| Supply Voltage | 24 V dc | |
| Input Type | Digital | |
| Number of Outputs | 4 | |
| Network Type | Ethernet | |
| Minimum Operating Temperature | 0°C | |
| Programming Interface | Computer, Operating Panel | |
| Program Capacity | 31 x 31 Blocks | |
| Display Included | Yes | |
| Communication Port Type | RJ45 | |
| Dimensions | 90 x 71.5 x 60 mm | |
| Maximum Operating Temperature | +55°C | |
| Output Current | 300 mA | |
| Programming Language Used | FBD, Ladder Logic | |
| Mounting Type | DIN Rail | |
| Width | 71.5mm | |
| Length | 90mm | |
| Depth | 60mm | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Manufacturer Series LOGO! 8 | ||
Number of Inputs 8 | ||
Output Type Digital | ||
Supply Voltage 24 V dc | ||
Input Type Digital | ||
Number of Outputs 4 | ||
Network Type Ethernet | ||
Minimum Operating Temperature 0°C | ||
Programming Interface Computer, Operating Panel | ||
Program Capacity 31 x 31 Blocks | ||
Display Included Yes | ||
Communication Port Type RJ45 | ||
Dimensions 90 x 71.5 x 60 mm | ||
Maximum Operating Temperature +55°C | ||
Output Current 300 mA | ||
Programming Language Used FBD, Ladder Logic | ||
Mounting Type DIN Rail | ||
Width 71.5mm | ||
Length 90mm | ||
Depth 60mm | ||
LOGO! 8 - Logic Modules
LOGO!8 is the latest generation of intelligent Logic Modules from Siemens, offering a refined upgrade from the previous generation. Improvements include simplified handling, new optical indicating display and full communication functions via Ethernet across the full range of Logic Modules.
Another added benefit of the LOGO!8 is that all Logic Modules come equipped with an integrated Web Server for monitoring and control with LOGO! via WLAN and the Internet; easy to configure, no HTML programming knowledge required.
Another added benefit of the LOGO!8 is that all Logic Modules come equipped with an integrated Web Server for monitoring and control with LOGO! via WLAN and the Internet; easy to configure, no HTML programming knowledge required.
LOGO! 8 Logic Modules with an integrated Web Server
Refined screen giving a new look and feel to the Logic Module
6 line display with 16 characters per line meaning more specific messages can be used via text
Optical emphasis of alarms catered for thanks to the selectable white, orange & red backlighting
Logic Modules are compatible for all voltages
SIMATIC S7 communication made possible thanks to integrated Ethernet connectivity across the LOGO!8 range
Text message communication for alerts and control via Smartphone is made possible using the LOGO! CMR module. This can provide status updates, value adjustments and synchronize timezones
Typical functions include:
Timer Functions: ON Delay, OFF Delay, ON/OFF Delay, Weekly/Yearly Timer, Pulse Generator plus many more
Counter Functions: Up/Down Counter, Hours counter & Threshold trigger
Analog Functions: Mathematic instruction, Amplifier, Min/Max & Average values
Plus a comprehensive range of other functions for further customisation to ensure your application is catered for
Siemens LOGO! 8 Series
