      RS Pro Eyebolt M12
      Product Details

      Eyebolts

      A range of high quality, metric eyebolts with collar to BS4278 for use in a wide range of lifting applications. These eyebolts are proof tested and supplied complete with test certificate.

      Thread Dia. (mm) 10 12 16 20 24 30
      SWL axial (tonnes) 0.25 0.4 0.8 1.6 2.5 4
      0.25 0.32 0.63 1.25 2 3.2
      15° 0.08 0.2 0.4 0.8 1.25 2
      30° 0.06 0.125 0.25 0.5 0.8 1.25
      45° 0.05 0.08 0.16 0.32 0.5 0.8

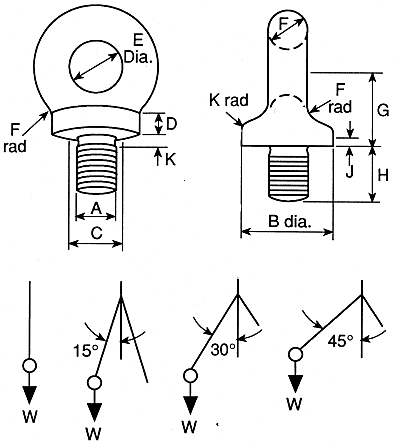

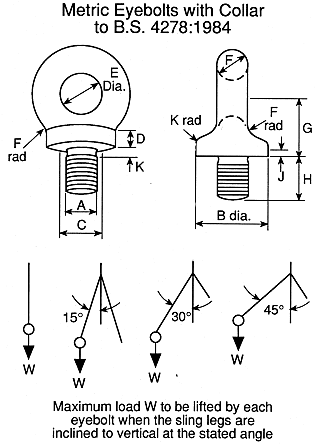

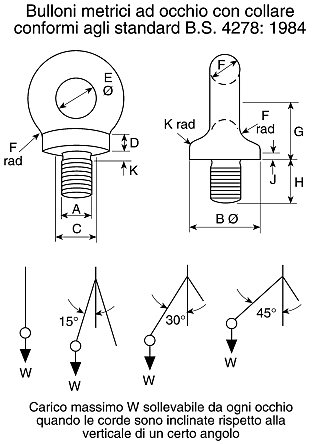

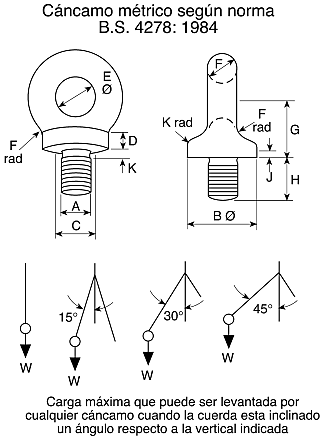

      Dimensions (mm)
      B 22 22 29 40 52 65
      C 15 15 20 27 35 44
      D 7 7 10 14 17 22
      E 15 15 20 27 35 44
      F 9 9 12 16 21 26
      G 20 20 26 36 46 58
      H 18 18 23 32 40 51
      J 1 1 1 1 2 2
      K 3 3 3 5 6 7

      Note

      When lifting, two or more eyebolts should be used. Safe working load detailed in 'dimensions' table

      //media.rs-online.com/t_line/L673642-01.gif
      //media.rs-online.com/t_line/LE673642-02.gif
      //media.rs-online.com/t_line/LF673692-10.gif
      //media.rs-online.com/t_line/LI673642-02.gif
      Specifications
      Not what you’re looking for? Select the attributes you require, then click the button below
      Diameter15 mm
      Thread SizeM12
      Thread Length15mm
      Working Load Limit0.4t
      MaterialCarbon Steel
