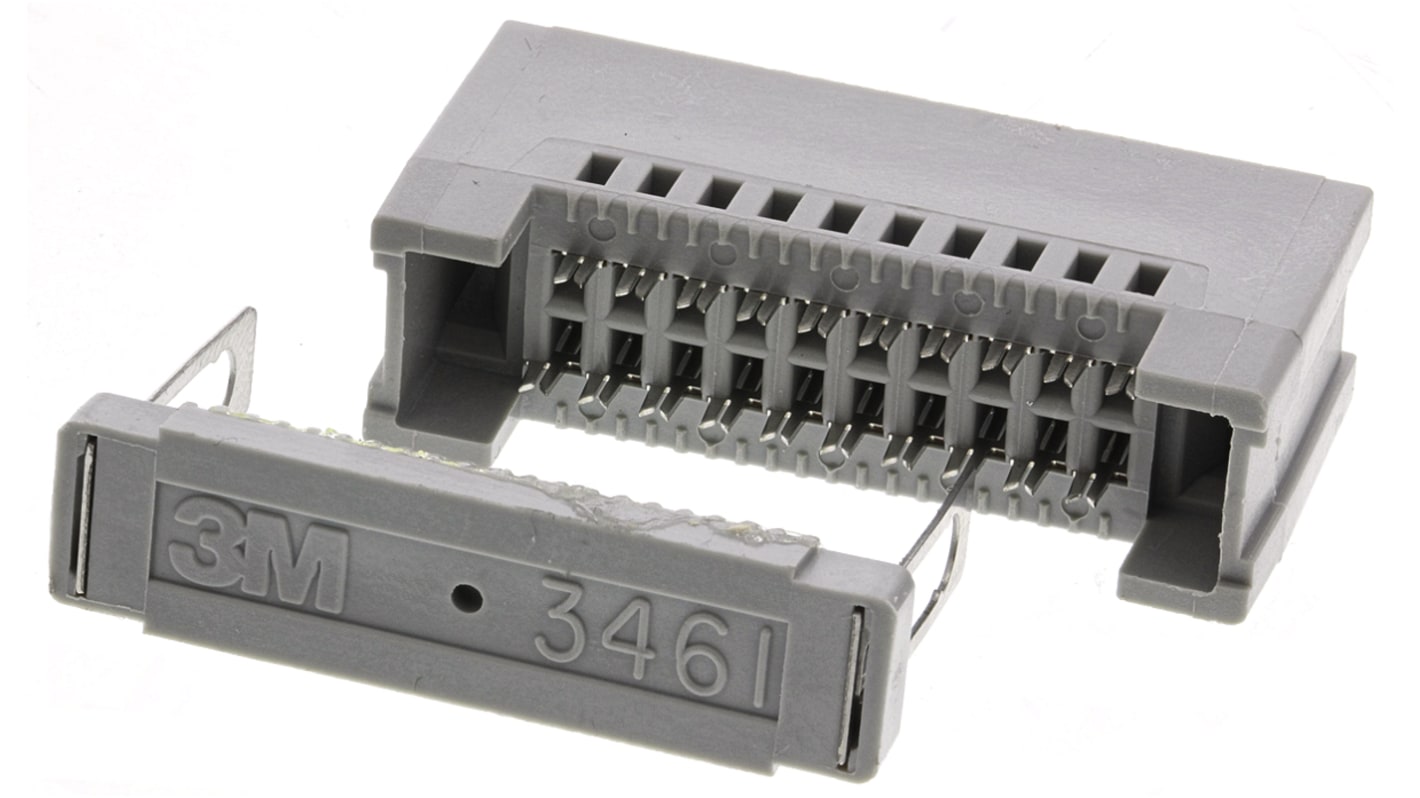

3M 3000 Series Right Angle Female Edge Connector, Panel Mount, 20-Contacts, 2.54mm Pitch, 2-Row, IDT Termination
- RS Stock No.:
- 120-9983
- Mfr. Part No.:
- 3461-0001
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£11.20
(exc. VAT)
£13.44
(inc. VAT)
- RS Stock No.:
- 120-9983
- Mfr. Part No.:
- 3461-0001
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Body Orientation | Right Angle | |
| Gender | Female | |
| Number of Contacts | 20 | |
| Number of Rows | 2 | |
| Pitch | 2.54mm | |
| Mounting Type | Panel Mount | |
| Termination Method | IDT | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Copper Alloy | |
| Current Rating | 1A | |
| Housing Material | PBT | |
| Series | 3000 | |
| Maximum Operating Temperature | +105°C | |
| Depth | 11.2mm | |
| Length | 37.3mm | |
| Width | 24.4mm | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand 3M | ||
Body Orientation Right Angle | ||
Gender Female | ||
Number of Contacts 20 | ||
Number of Rows 2 | ||
Pitch 2.54mm | ||
Mounting Type Panel Mount | ||
Termination Method IDT | ||
Contact Plating Gold over Nickel | ||
Contact Material Copper Alloy | ||
Current Rating 1A | ||
Housing Material PBT | ||
Series 3000 | ||
Maximum Operating Temperature +105°C | ||
Depth 11.2mm | ||
Length 37.3mm | ||
Width 24.4mm | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- US
3M 3000 Series 2.54mm Card-Edge IDC Ribbon Cable Connectors
3000 Series 2.54mm card-edge IDC ribbon cable transition connectors that allow the direct mounting of ribbon cable to the PCB without the use of a PCB receptacle connector. These card edge IDC ribbon cable connectors have a reinforced design that prevents mouth bowing and enables consistent contact performance and feature metal cover clips for secure cover retention and bifurcated contacts. Part numbers XXXX-0000 have drilled mounting flanges with 3.18mm diameter holes for panel mounting purposes.
Strain reliefs are available for card edge connectors without a mounting flange (part numbers XXXX-0001)
A keying plug is available for both versions see stock number 121-2800.
Strain reliefs are available for card edge connectors without a mounting flange (part numbers XXXX-0001)
A keying plug is available for both versions see stock number 121-2800.
