- RS Stock No.:
- 156-1146
- Mfr. Part No.:
- 933023100 GDSN 307 black
- Brand:
- Hirschmann
Available to back order for despatch 06/05/2024
Price Each
£2.79
(exc. VAT)
£3.35
(inc. VAT)
Units | Per unit |
1 - 9 | £2.79 |
10 - 24 | £2.71 |
25 - 49 | £2.63 |
50 + | £2.55 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 156-1146
- Mfr. Part No.:
- 933023100 GDSN 307 black
- Brand:
- Hirschmann
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

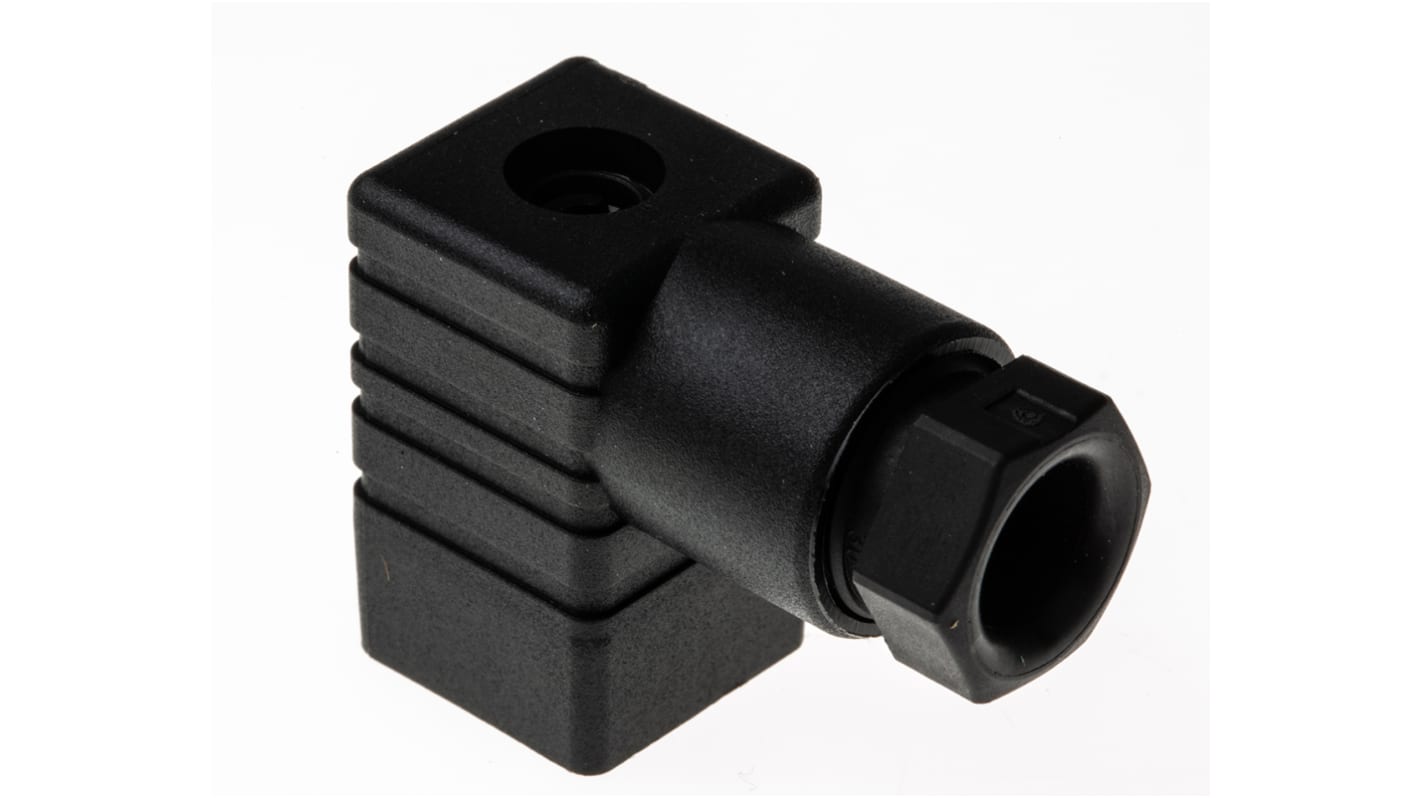

Belden Hirschmann Female Solenoid Valve Connector, 6A Current Rating - GDSN 307 Series - 933023100 GDSN 307 black
Connect a solenoid valve to your pneumatic or hydraulic system with this connector from Belden's Hirschmann range. The contact surfaces of this connector are made of highly conductive tin material, so you can be sure of a reliable connection. The housing is made of polyamide, which offers reliable resistance to abrasion and impacts, so it's ideal for use in industrial settings. This material also serves as an insulator to protect you against electric shocks. The unit accommodates cables with diameters from 4.5 to 6mm, making it a versatile connection solution.
Features & Benefits
Wide operating temperature range of -40ºC to +125ºC for use in demanding environments
IP65 (ingress protection) rating indicates it withstands dust and low-pressure water jets
Central screw mounting makes installation quick and easy
IP65 (ingress protection) rating indicates it withstands dust and low-pressure water jets
Central screw mounting makes installation quick and easy
Applications
Pharmaceutical industry
Refrigeration and air conditioning units
Sprinkler systems
Refrigeration and air conditioning units
Sprinkler systems
What's the voltage rating of this connector?
The voltage rating of this connector is 250V AC/DC.
What are the dimensions of this solenoid valve connector?
The connector's overall length is 38mm and it has a width of 26mm. The open diameter of the female end is 15mm, making this a compact choice.
Specifications
Attribute | Value |
---|---|
Pole Format | 3P+E |
DIN 43650 Type | DIN 43650 C |
Voltage Rating | 250 V ac/dc |
Gender | Female |
Mounting Type | Screw Down |
Cable Gland Size | PG7 |
Colour | Black |
Current Rating | 6A |
Series | GDSN 307 |
IP Rating | IP65 |
Termination Method | Screw Down |
Cable Diameter | 4.5 → 6mm |
