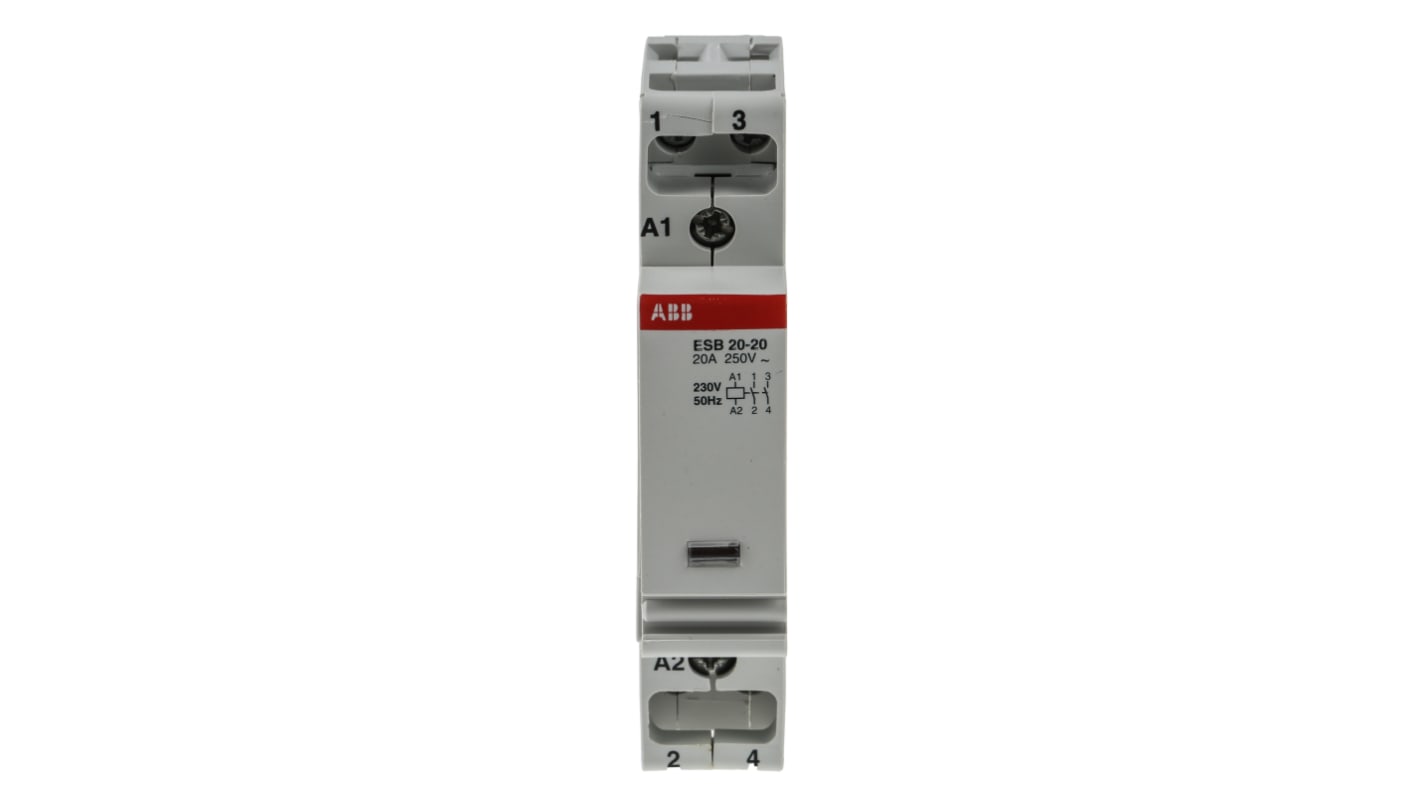

ABB ESB Series Contactor, 230 V ac Coil, 2-Pole, 20 A, 4 kW, 2NO
- RS Stock No.:
- 445-8201
- Mfr. Part No.:
- GHE3211102R0006
- Brand:
- ABB
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£47.84
(exc. VAT)
£57.41
(inc. VAT)
- RS Stock No.:
- 445-8201
- Mfr. Part No.:
- GHE3211102R0006
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 230 V ac | |
| Number of Poles | 2 | |
| Contact Current Rating | 20 A | |
| Power Rating | 4 kW | |
| Series | ESB | |
| Range | ESB20-20 | |
| Normal State Configuration | 2NO | |
| Terminal Type | Screw | |
| Length | 86mm | |
| Width | 17.5mm | |
| Depth | 67mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +55°C | |
Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 230 V ac | ||
Number of Poles 2 | ||
Contact Current Rating 20 A | ||
Power Rating 4 kW | ||
Series ESB | ||
Range ESB20-20 | ||
Normal State Configuration 2NO | ||
Terminal Type Screw | ||
Length 86mm | ||
Width 17.5mm | ||
Depth 67mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +55°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
ESB Installation Contactors
Installation contactors enable automated processes in building installation
Preferred solution for switching and controlling lighting, heating systems, ventilation systems, pumps, heating pumps and other building automation drives
Hum-free solenoid drive
Quiet switching
Switch position indication
Integrated coil circuit
Overvoltage protection of solenoid up to 5 kV
High switching capacity and service life
Quick-action fixture with locking slide
Large connections with open frame terminals
Contact protection to VDE 0106 Part 100
Auxiliary switches and sealing caps as accessories
Preferred solution for switching and controlling lighting, heating systems, ventilation systems, pumps, heating pumps and other building automation drives
Hum-free solenoid drive
Quiet switching
Switch position indication
Integrated coil circuit
Overvoltage protection of solenoid up to 5 kV
High switching capacity and service life
Quick-action fixture with locking slide
Large connections with open frame terminals
Contact protection to VDE 0106 Part 100
Auxiliary switches and sealing caps as accessories
Approvals
CSA, CE
