- RS Stock No.:
- 279-7087
- Brand:
- RS PRO
70 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 10)
£3.933
(exc. VAT)
£4.72
(inc. VAT)
Units | Per unit | Per Bag* |
10 + | £3.933 | £39.33 |
*price indicative |
- RS Stock No.:
- 279-7087
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FI
Product Details

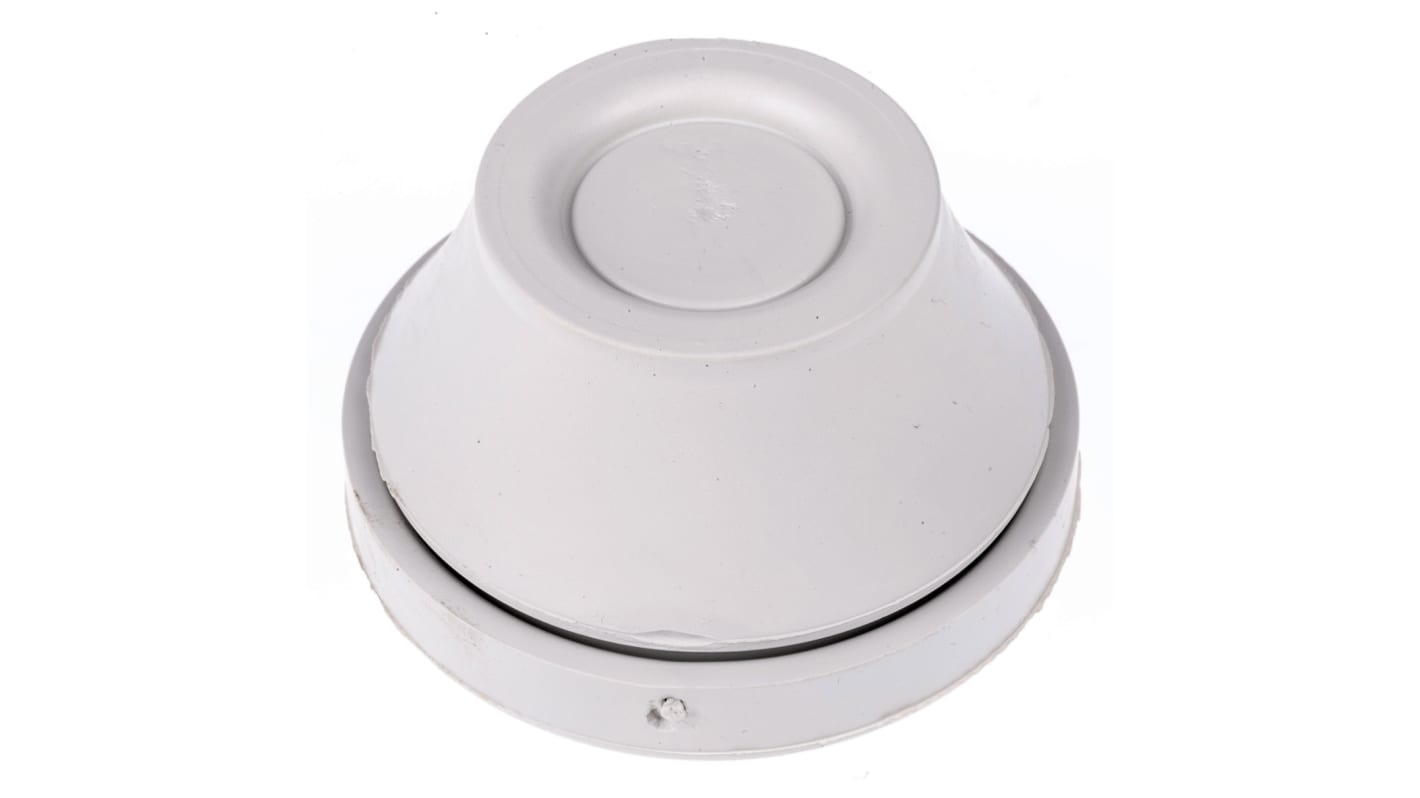

RS Pro IP67 EPDM Cable Glands/Grommets
The grey RS Pro halogen free rubber membrane cable grommets are an excellent choice where space is limited.
Features and Benefits
Provides protection up to IP67
Quick and low-cost method of feeding cables through panels
Tapered top provides a degree of retention and sealing
Thread size of M16 to M50
Operating temperature of -40°C to +110°C
Cable diameter range of 5 to 35 mm
Note
This product is not suitable as a direct replacement for traditional cable glands when positive and secure retention are needed.
Specifications
Attribute | Value |
---|---|
Thread Size | M50 |
Maximum Cable Diameter | 35mm |
Minimum Cable Diameter | 27mm |
Material | EPDM |
Colour | Grey |
IP Rating | IP67 |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +110°C |
