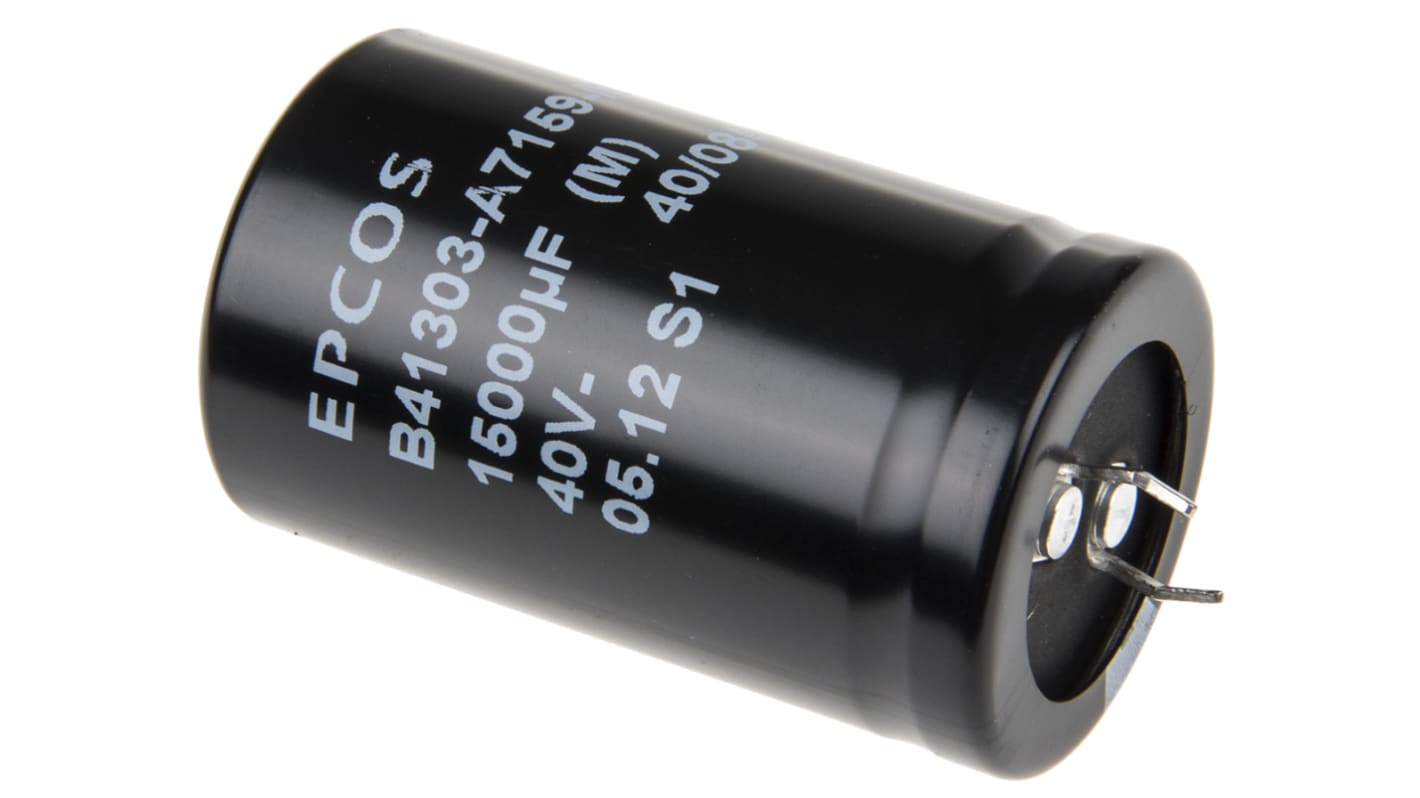

EPCOS 15000μF Electrolytic Capacitor 40V dc, Snap-In - B41303A7159M
- RS Stock No.:
- 208-7239
- Mfr. Part No.:
- B41303A7159M
- Brand:
- EPCOS
Discontinued
- RS Stock No.:
- 208-7239
- Mfr. Part No.:
- B41303A7159M
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Capacitance | 15000µF | |
| Voltage | 40V dc | |
| Mounting Type | Snap-In | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 30 (Dia.) x 50mm | |
| Height | 50mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 30mm | |
| Maximum Operating Temperature | +85°C | |
| Lead Pitch | 10mm | |
| Lifetime | 2000h | |
| Ripple Current | 3.3A | |
| Tolerance | ±20% | |
| Equivalent Series Resistance | 27mΩ | |
| Series | B41303 | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Capacitance 15000µF | ||
Voltage 40V dc | ||
Mounting Type Snap-In | ||
Technology Aluminium Electrolytic | ||
Dimensions 30 (Dia.) x 50mm | ||
Height 50mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 30mm | ||
Maximum Operating Temperature +85°C | ||
Lead Pitch 10mm | ||
Lifetime 2000h | ||
Ripple Current 3.3A | ||
Tolerance ±20% | ||
Equivalent Series Resistance 27mΩ | ||
Series B41303 | ||
B41303 Series
Construction
Protected against short-circuit, polarised
Aluminium housing, fully insulated
Snap-in, self-retaining solder terminals
Negative pole labelling on the housing cover
Negative pole not insulated from the housing
All welded design
Uniform pitch 10mm
Operating temperature -40 to +85°C
Aluminium housing, fully insulated
Snap-in, self-retaining solder terminals
Negative pole labelling on the housing cover
Negative pole not insulated from the housing
All welded design
Uniform pitch 10mm
Operating temperature -40 to +85°C
Features
High a.c. loading capacity
High CV product, which means extremely small dimensions
High CV product, which means extremely small dimensions
Applications
Switch mode power supplies in industrial and entertainment electronics
